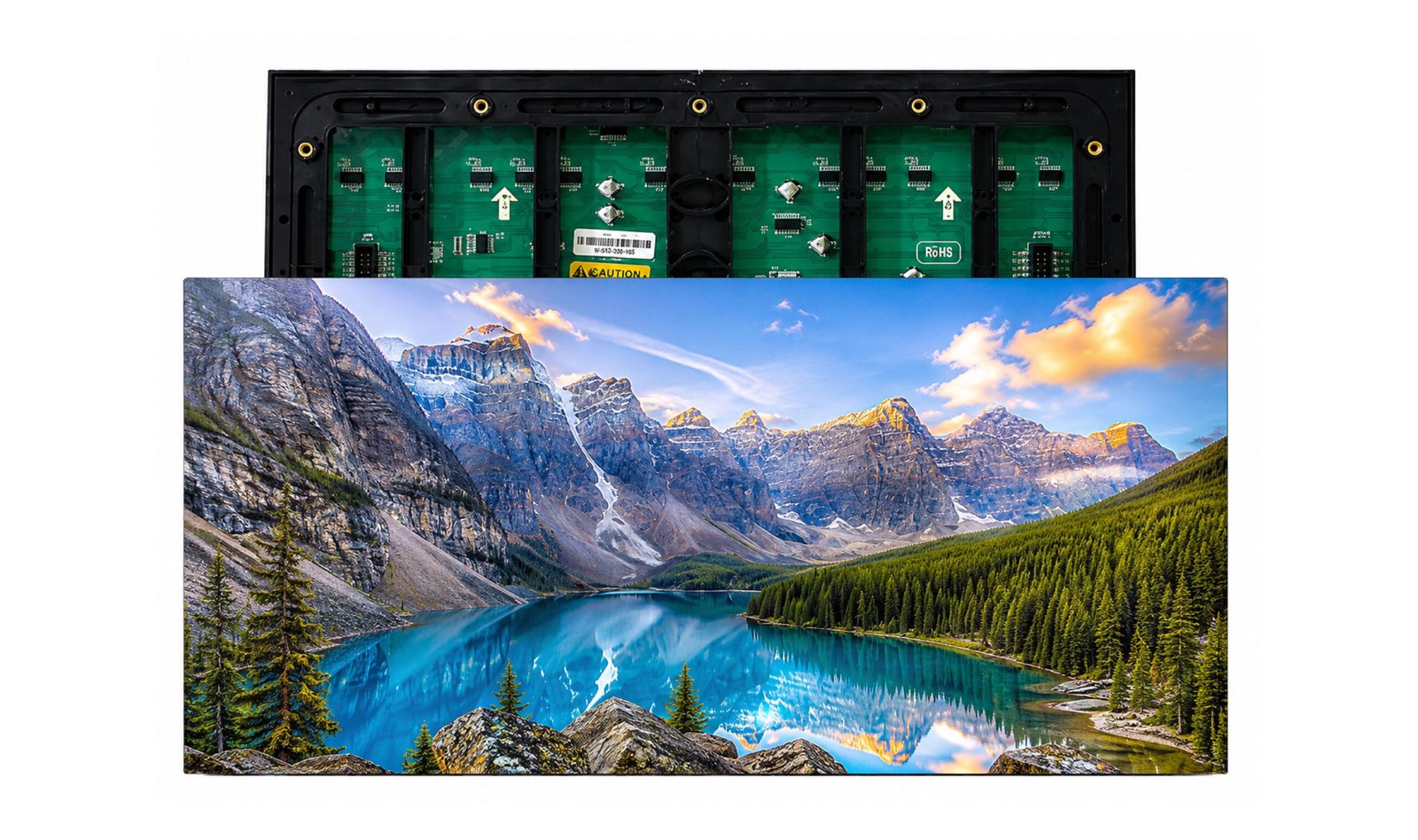

Built for demanding outdoor environments, this series delivers high brightness (≥4500 cd/m²), tremendous contrast, and rock-solid stability. Self-encapsulated, frosted lamp beads with five-side inking ensure ultra-high contrast and consistency, while comprehensive waterproofing and an IP65 front protection rating keep it reliable in rain, dust, and extreme climates. A new drive IC delivers low power consumption and high refresh rate, and a high-strength module kit resists deformation across pixel pitches from 2.5mm to 10mm.
Seven pixel pitch options built on a shared 320×160mm module, so projects can move between resolutions without changing the outdoor cabinet structure.
| Outdoor Full Color 320×160 Series | |||||||
|---|---|---|---|---|---|---|---|
| Model | PH2.5-O/PM2.5-O | PH3-O/PM3-O | PH4-O/PM4-O | PH5-O/PM5-O | PH6.67-O/PM6.67-O | PH8-O/PM8-O | PH10-O/PM10-O |
| Pixel pitch (mm) | 2.5 | 2.963 | 4 | 5 | 6.67 | 8 | 10 |
| Pixel density (dots/m²) | 160,000 | 113,906 | 62,500 | 40,000 | 22,500 | 15,625 | 10,000 |
| LED type | SMD1516 | SMD1516/SMD1921 | SMD1921 | SMD1921 | SMD2727 | SMD2727 | SMD2727 |
| Viewing distance (m) | ≥2.5 | ≥3 | ≥4 | ≥5 | ≥7 | ≥8 | ≥10 |
| Module size (mm) | 320 × 160 | ||||||
| Resolution (dots) | 128×64 | 104×52 | 80×40 | 64×32 | 48×24 | 40×20 | 32×16 |
| Brightness (cd/m²) | ≥4500 | ||||||
| Viewing angle | H≥160° V≥140° | ||||||
| Scan mode | 1/16 | 1/13 | 1/10 | 1/8 | 1/6 | 1/5 | 1/2 |
| Driving mode | Constant Current | ||||||
| Refresh rate (Hz) | ≥3840 / ≥1920 | ||||||
| Gray level | 16Bit | ||||||
| Avg. power consumption (W/m²) | 342 | 342 | 323 | 372 | 332 | 322 | 483 |
| Max. power consumption (W/m²) | 684 | 684 | 645 | 744 | 644 | 644 | 966 |
| Input voltage (V) | 4.2 / 5VDC | ||||||
| Lifespan | ≥100,000 hours | ||||||
| Interface | HUB75E | ||||||
| Protection class | IP65 (Front) | ||||||
