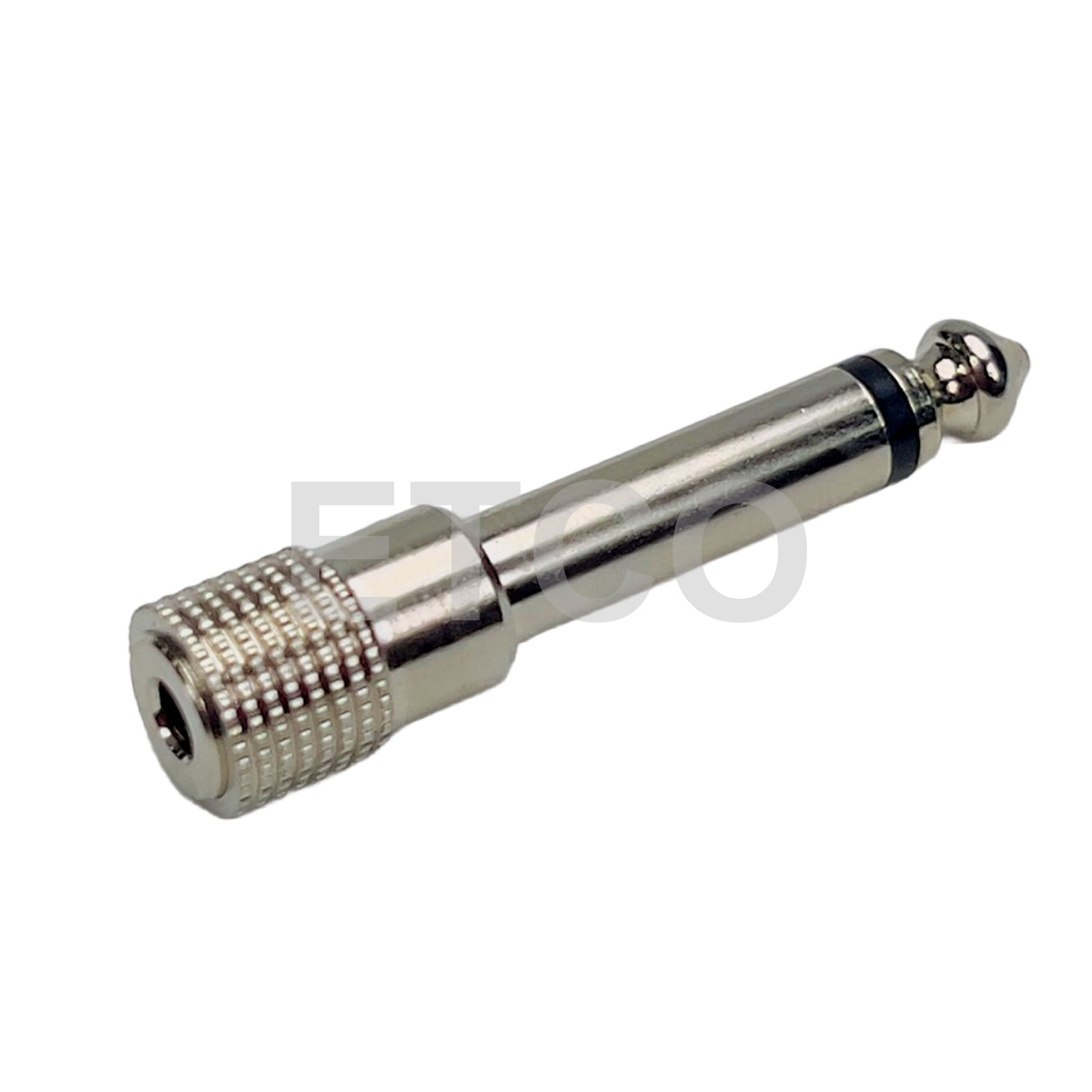

Aux To Mono Pin

Connection Type: 3.5mm AUX Female to 6.35mm (1/4") Mono Male Plug
Connector Type: Audio Adapter (Female to Male)
Rated Current: Approx. 1–2 A
Rated Voltage: < 50V AC
Contact Resistance: ≤ 5mΩ
Insulation Resistance: > 100 MΩ (initial)
Dielectric Strength: 500V AC
Connector Material: Nickel-plated brass contacts for reliable conductivity
Housing Material: Metal alloy body with knurled grip finish
Cable Compatibility: Compatible with 3.5mm AUX male plugs
Signal Type: Mono audio signal (TS – Tip Sleeve)
Adapter Configuration: 3.5mm Female Jack to 6.35mm Mono Male Plug
Service Life: >1000 mating cycles
Temperature Range: -20°C to +70°C
Protection Class: IP20
Application: Suitable for connecting 3.5mm audio devices to 6.35mm mono audio inputs used in amplifiers, mixers, musical instruments, and professional audio equipment.
