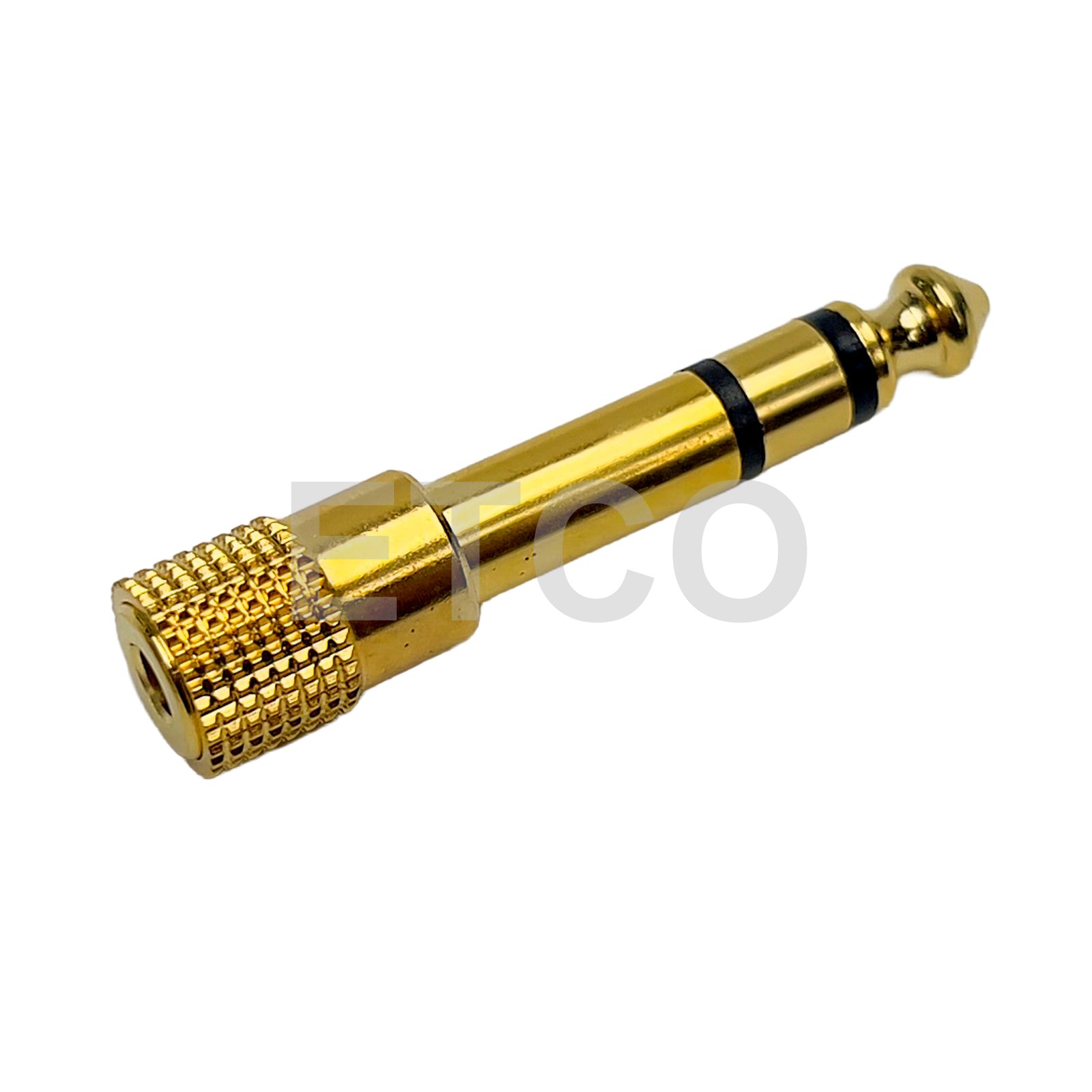

Aux to Stereo Pin

Connection Type: 3.5mm AUX Female to 6.35mm (1/4") Stereo Male Plug
Connector Type: Audio Adapter (Female to Male)
Rated Current: Approx. 1–2 A
Rated Voltage: < 50V AC
Contact Resistance: ≤ 5mΩ
Insulation Resistance: > 100 MΩ (initial)
Dielectric Strength: 500V AC
Connector Material: Gold-plated brass contacts for enhanced conductivity and corrosion resistance
Housing Material: Metal alloy body with knurled grip finish
Cable Compatibility: Compatible with 3.5mm AUX male plugs
Signal Type: Stereo audio signal (TRS – Tip Ring Sleeve)
Adapter Configuration: 3.5mm Female Jack to 6.35mm Stereo Male Plug
Service Life: >1000 mating cycles
Temperature Range: -20°C to +70°C
Protection Class: IP20
Application: Suitable for connecting 3.5mm audio devices such as headphones, smartphones, laptops, and media players to 6.35mm stereo audio inputs on amplifiers, mixers, audio interfaces, keyboards, and professional audio equipment.
