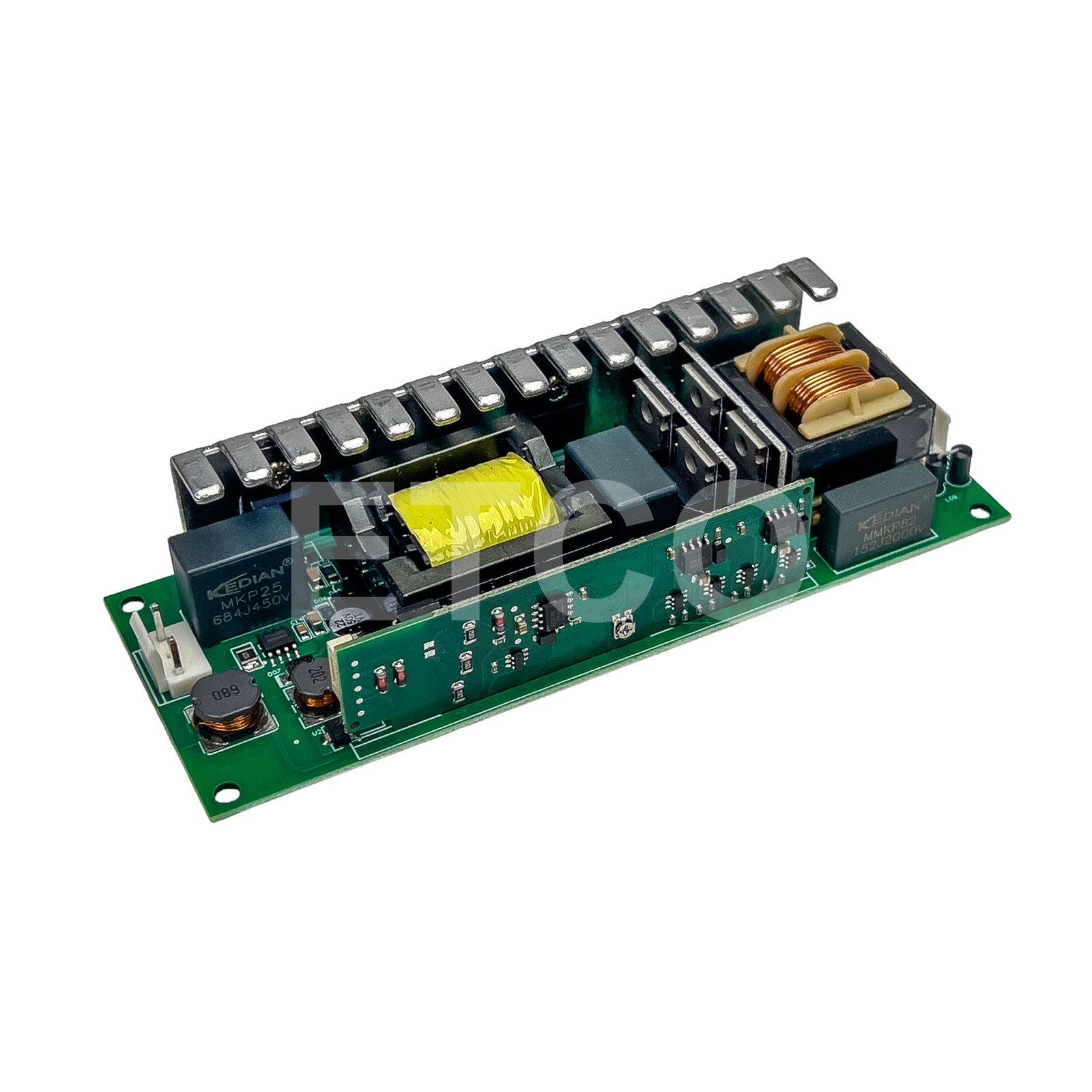

Introducing the ETCO Beam 380W 17R Ballast, the replacement lamp power supply board for 380W moving head beam lights in Pakistan. It ignites the 17R discharge lamp with a high-voltage strike and then keeps it running on steady, regulated power. If your beam light's lamp won't strike, flickers, or switches off during shows, this board is often the fix.
✅ Ballast for 380W 17R beam moving heads
✅ Works with MSD 380 17R type discharge lamps
✅ Electronic ballast with built-in ignition circuit
✅ Large heat sinks for stable power regulation
✅ Over-voltage, over-current, and thermal protection
✅ Multi-pin connectors for easy replacement
Technical Parameters
Product: Beam 380W 17R Ballast (Lamp Supply Board)
Power Rating: 380W
Lamp Type: MSD 380 17R discharge lamp compatible
Circuit Type: Electronic ballast with integrated ignition circuit
Input Voltage: From fixture main power supply (confirm with supplier)
Interface: Multi-pin connectors for lamp and power input
Components: Transformer coil, film capacitors, heat sinks
Protection: Over-voltage, over-current, thermal
Application: Repair and replacement for 380W 17R beam lights
The ETCO 380W beam ballast powers the 17R lamp inside a 380W moving head beam light. First, its ignition circuit gives the lamp a very high-voltage strike to start it. After that, it supplies steady, regulated power so the beam stays sharp and bright. However, when the ballast fails, the lamp may not start, may flicker, or may switch off in the middle of a show.
Technicians and rental companies use this board to repair beam lights with lamp faults. In addition, the multi-pin connectors fit the original wiring, so replacement is quick. Moreover, built-in protection against over-voltage, over-current, and heat helps the board last longer. The large heat sinks also keep it cool during long concerts and wedding events.
It suits fixtures like our 380W beam moving head light. If the light won’t power on at all, test our 450W beam power supply first. For screen or menu faults, check our 380W beam display board. Therefore, repair shops in Lahore, Karachi, and Islamabad keep spares ready. Finally, ETCO Sound & Light delivers nationwide.
What is a 380W beam ballast?
It is the lamp power board in a 380W 17R beam light. So, it starts the lamp and keeps it running steadily.
How do I know the ballast is faulty?
The lamp won’t strike, flickers, or turns off. However, test with a known good lamp first, because an old lamp shows the same signs.
Is it safe to replace it myself?
Only if you are trained. The ignition circuit produces very high voltage, so let a qualified technician install it.
What is the price of a 380W beam ballast in Pakistan?
The price depends on quantity. So, contact ETCO Sound & Light on WhatsApp for the latest rates. Also, we offer bulk prices for repair shops.
Where can I buy it in Pakistan?
You can buy it from ETCO Sound & Light in Lahore. Moreover, we deliver across Pakistan.
