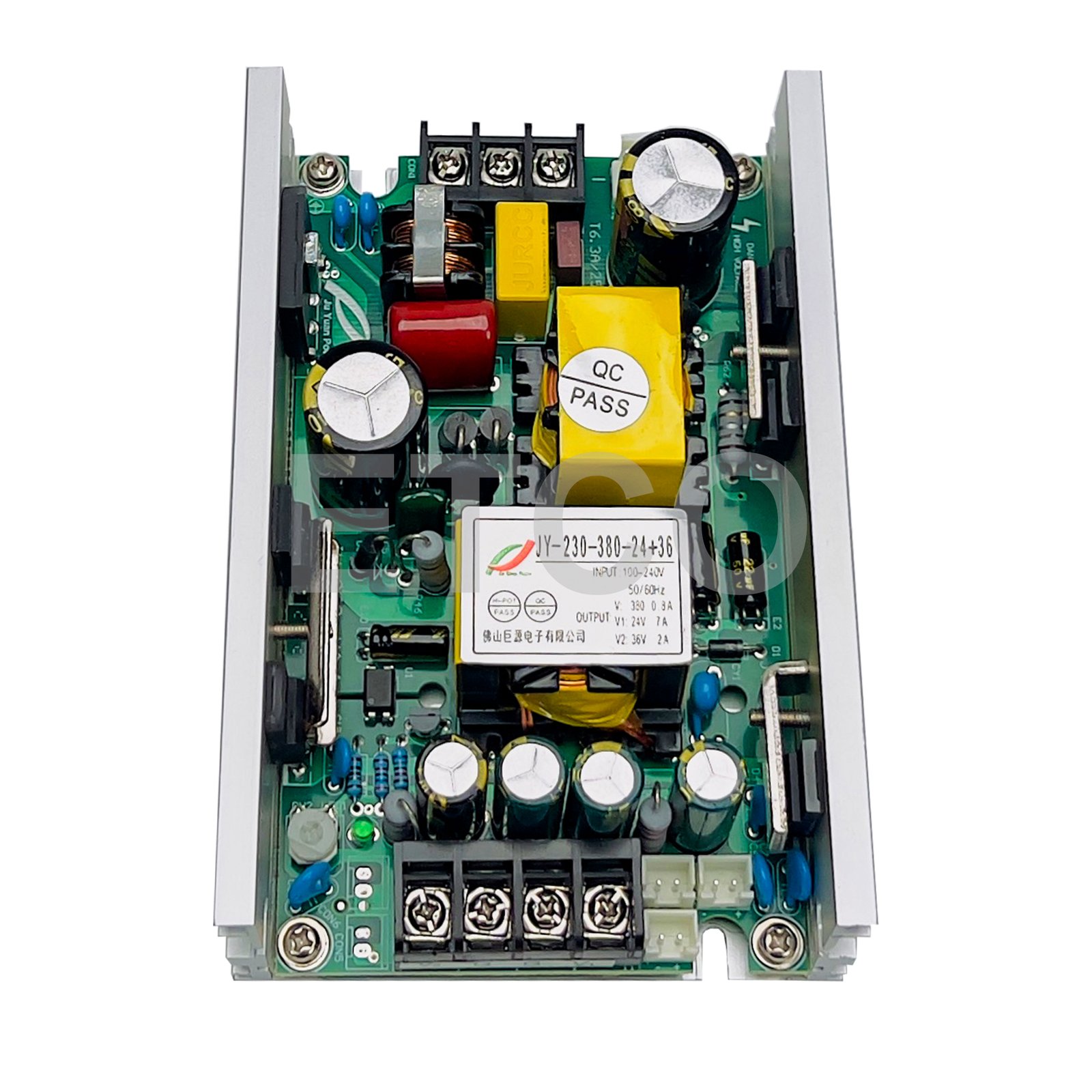

Introducing the ETCO Beam Supply 230W 7R, the main power supply board for 230W 7R moving head beam lights in Pakistan. It turns AC mains into three outputs: 380V for the lamp, plus 36V and 24V for the motors, fans, and control boards. If your beam light won't turn on, resets randomly, or the lamp won't strike, this board is a common fix.
✅ Model JY-230-380-24+36
✅ Wide AC 110–240V, 50–60Hz input
✅ Three outputs: 380V, 36V DC, 24V DC
✅ 260W total power
✅ Aluminium base plate for heat dissipation
✅ Screw terminals for easy wiring
Technical Parameters
Product: Beam Supply 230W 7R
Model: JY-230-380-24+36 (as printed on label)
Input Voltage: AC 110–240V, 50–60Hz
Outputs: 380V (lamp), 36V DC, 24V DC
Power: 260W
Size: 90 × 130 × 40mm
Type: Switching power supply (SMPS)
Base: Aluminium mounting plate
Terminals: Screw terminal blocks + connectors
Application: 230W 7R moving head beam lights
The ETCO 230W beam power supply is the main power board inside a 230W 7R moving head beam light. First, it converts AC mains into three separate outputs. As a result, the lamp, motors, fans, and control boards all receive the right voltage. However, when this board fails, the light may stay dead, reset during shows, or refuse to strike the lamp.
Technicians use this board to repair beam lights instead of buying new fixtures. In addition, the wide 110–240V input handles the voltage drops common at wedding venues. Moreover, the aluminium base plate spreads heat, which keeps the board stable during long events. The screw terminals and connectors also make replacement quick and neat.
It suits fixtures like our 230W beam moving head light. If the lamp still won’t strike after replacement, test our 230W beam ballast next. For menu or display faults, check our 230W beam display board. Therefore, repair shops in Lahore, Karachi, and Islamabad keep spares ready. Finally, ETCO Sound & Light delivers nationwide.
What is a 230W beam power supply?
It is the main power board in a 230W 7R beam light. So, it powers the lamp, motors, and control boards.
How do I know the power supply is faulty?
The light won’t turn on, resets randomly, or the motors stop. However, check the fuse and power cable first.
Is it safe to replace it myself?
Only if you are trained. It carries mains and 380V outputs, so let a qualified technician install it.
What is the price of a 230W beam power supply in Pakistan?
The price depends on quantity. So, contact ETCO Sound & Light on WhatsApp for the latest rates. Also, we offer bulk prices for repair shops.
Where can I buy it in Pakistan?
You can buy it from ETCO Sound & Light in Lahore. Moreover, we deliver across Pakistan.
