Introducing the ETCO 200W COB LED Chip, a dual colour warm white and cool white chip for COB par lights, blinders, and video lights in Pakistan. It delivers up to 18,000–22,000 lumens of smooth, even light with natural colours. If your COB light has a dark, burnt, or flickering chip, this replacement brings full brightness back.
✅ 200W high-power COB (Chip on Board) LED
✅ Dual colour: cool white 6000–6500K + warm white 3000–3500K
✅ Up to 18,000–22,000 lumens
✅ CRI ≥ 80 for natural colours on camera
✅ Independent channels for colour temperature mixing
✅ Screw-mount metal base for heatsink installation
Technical Parameters
Product: COB Light 200W Chip (Dual Color)
Power: 200W
Colours: Cool White 6000–6500K + Warm White 3000–3500K
Working Voltage: DC 30–36V (per channel, model dependent)
Forward Current: 1500–3000mA (constant current driver)
Luminous Flux: Up to 18,000–22,000 lm
Beam Angle: 120°
CRI: Ra ≥ 80
Connection: Solder terminals (+ / –)
Dimming: PWM and constant current compatible
Mounting: Screw-mount metal base
Cooling: Needs aluminium heatsink + fan
Lifespan: > 50,000 hours
Application: COB par lights, blinders, video and photography lights, DIY lighting
The ETCO 200W COB LED chip is the light source inside dual colour COB par lights and blinders. First, it packs two separate channels on one board: cool white and warm white. As a result, you can mix any shade from soft warm light to crisp daylight. However, when a chip overheats or burns out, the light shows dark patches, flickers, or stops working.
Technicians use this chip to repair COB stage lights instead of buying new fixtures. In addition, the screw-mount metal base fits standard heatsinks, so replacement is simple. Moreover, a CRI of 80+ keeps skin tones natural, which suits weddings, photography, and video shoots. Always use a proper heatsink, fan, and constant current driver, because the chip needs good cooling to last.
It fits fixtures like our 200W COB par light. For driver faults, check our COB light power supply. For control or dimming problems, see our COB light control card. Therefore, repair shops in Lahore, Karachi, and Islamabad keep spare chips ready. Finally, ETCO Sound & Light delivers nationwide.
What is a 200W COB LED chip?
It is a high-power LED module with many tiny LEDs on one board. So, it gives strong, even light from a single source.
Can I connect it directly to 220V?
No. It needs a constant current DC driver of about 30–36V. Therefore, never connect it to mains power directly.
Why did my old chip burn out?
Usually because of poor cooling or a faulty driver. So, check the fan, heatsink paste, and power supply before fitting a new chip.
What is the price of a 200W COB LED chip in Pakistan?
The price depends on quantity. So, contact ETCO Sound & Light on WhatsApp for the latest rates. Also, we offer bulk prices for repair shops.
Where can I buy it in Pakistan?
You can buy it from ETCO Sound & Light in Lahore. Moreover, we deliver across Pakistan.
No technical parameters added for this product yet.
Spare Parts

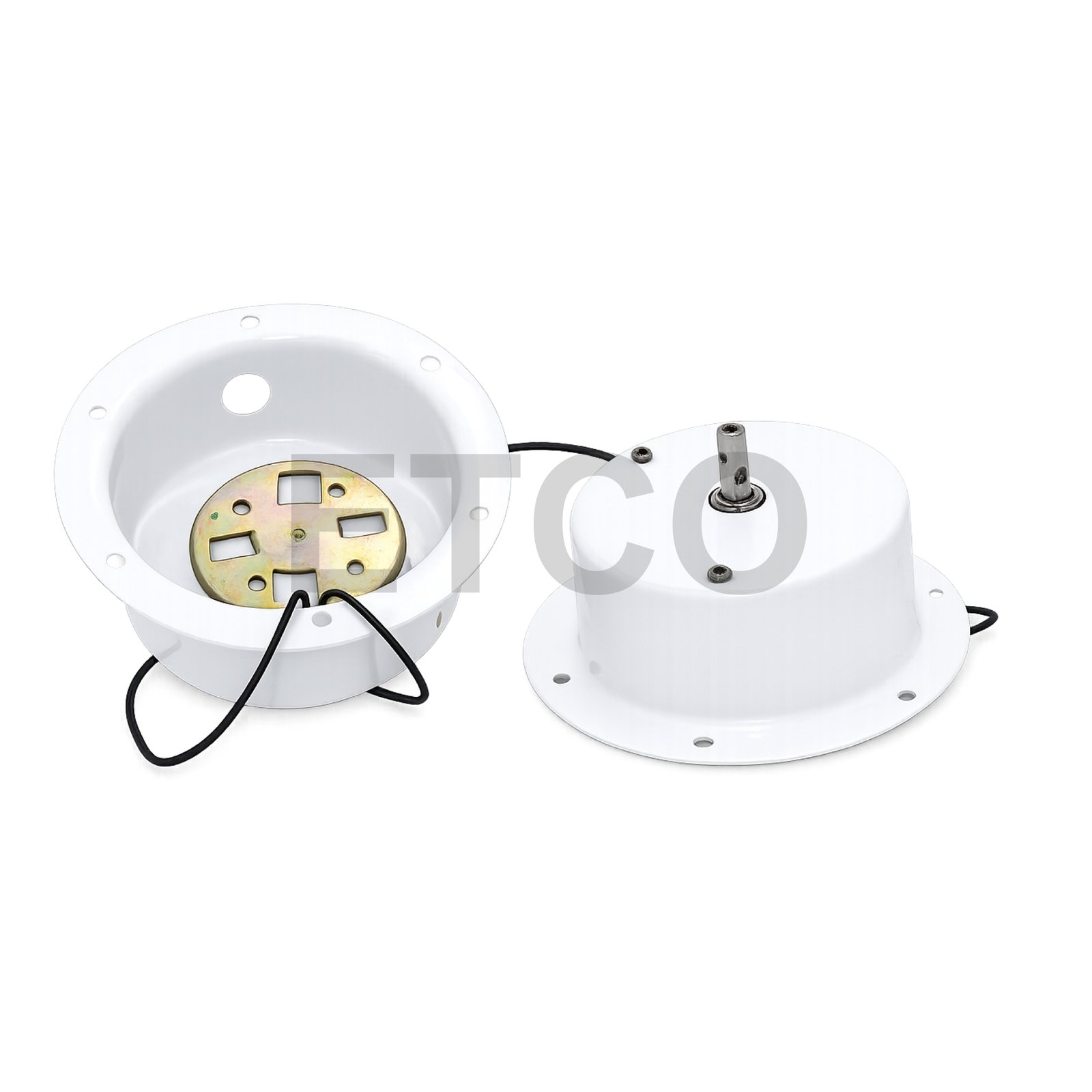

The ETCO mirror ball motor is a 220V synchronous rotator that spins…
