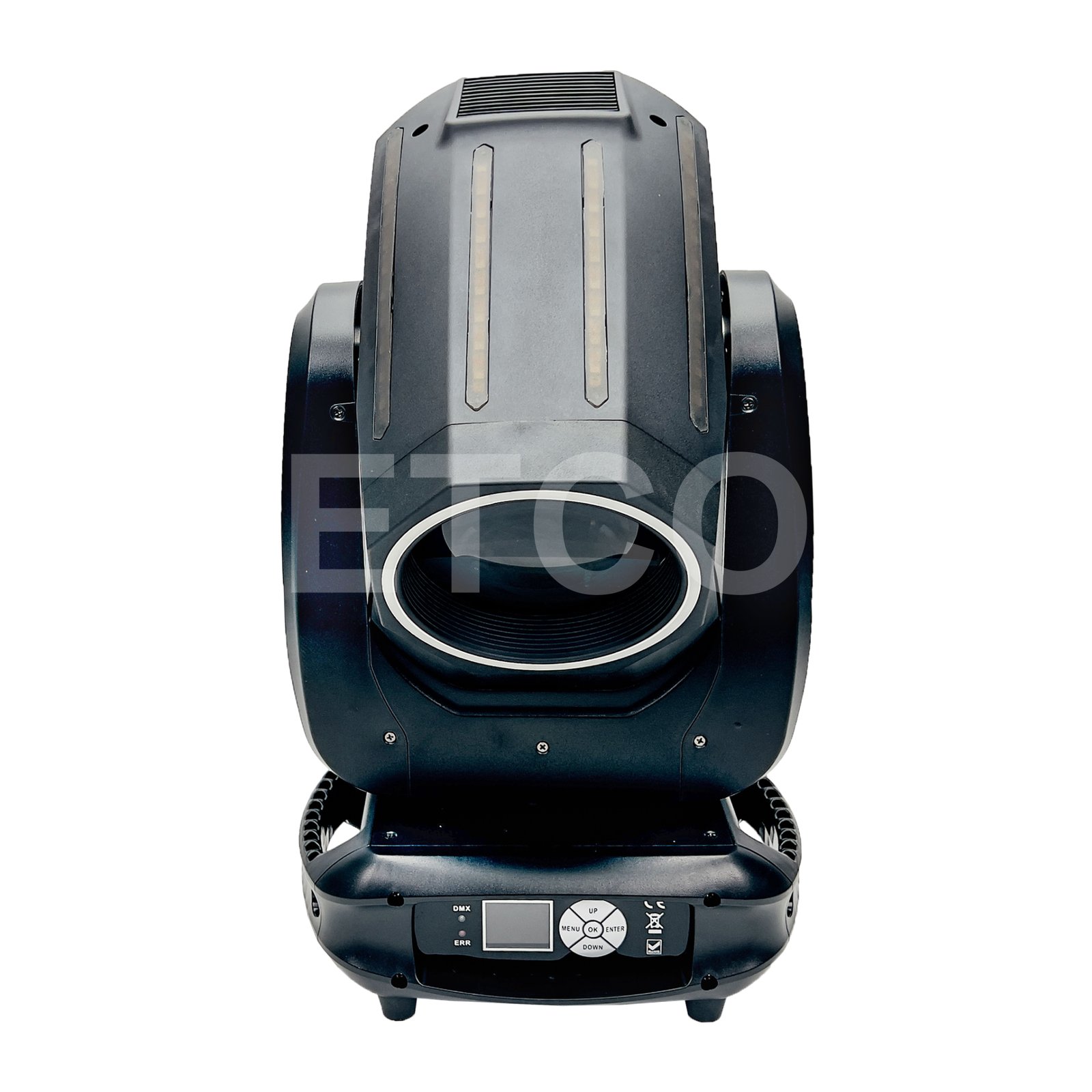

Moving Head Beam 380W 17R

**Fixture Type:** Professional Moving Head Beam Light
**Model:** 380W 17R Beam Moving Head
**Lamp Type:** 17R High-Intensity Discharge (HID) Lamp
**Power Rating:** 380W
**Light Source:** Original 17R Beam Lamp with High Brightness Output
**Beam Angle:** 2° Narrow Sharp Beam
**Light Color:** 14 Colors + Open White
**Color Wheel:** Rainbow Effect with Bi-Directional Rotation
**Gobo Wheel:** 17 Fixed Gobos + Open
**Prism Effects:** 8-Facet Prism & 16-Facet Prism with Rotation
**Frost Effect:** Linear Frost Wash Conversion
**Focus:** Electronic Motorized Focus
**Dimmer:** 0 – 100% Smooth Linear Dimming
**Strobe Effect:** Variable Speed Electronic Strobe (1–25 Flashes per Second)
**Pan Movement:** 540° Rotation
**Tilt Movement:** 270° Rotation
**Pan/Tilt Resolution:** 8-Bit & 16-Bit Precision Control
**Luminous Output:** Ultra-High Intensity Long Throw Beam Effect
**Color Effects:** Split Colors, Rainbow Flow and Color Jump Effects
**Beam Effects:** Sharp Aerial Beams, Prism Beams, Dynamic Gobo Projections and Mid-Air Effects

**Input Voltage:** AC 90V – 240V, 50/60Hz
**Control Mode:** DMX512, Auto Run, Sound Active, Master/Slave
**DMX Channels:** 16 / 20 Channels (Depending on Mode)
**Display Type:** LCD Digital Display with Function Buttons
**Control Buttons:** Menu, Up, Down, Enter
**Connectivity:** DMX In/Out, Power In/Out
**Programming Features:** Built-in Programs, Custom DMX Programming and Intelligent Effect Macros

**Housing Material:** Heavy-Duty Metal & High-Strength ABS Construction
**Mounting Type:** Floor Mount, Truss Mount or Hanging Installation
**Cooling System:** Advanced Intelligent Fan Cooling System
**Protection Class:** IP20 (Indoor Use)
**Operating Temperature:** -20°C to +45°C
**Expected Lamp Life:** Up to 2,000 Hours
**Energy Efficiency:** High Output Professional Beam with Optimized Power Consumption

Application:

Stage Shows, Concerts, DJ Events, Night Clubs, Weddings, Live Performances, Fashion Shows, TV Studios, Theaters, Event Productions and Large-Scale Entertainment Venues.

Features:

380W Powerful 17R Beam Lamp, Ultra-Sharp 2° Beam Angle, Dual Rotating Prisms, Multiple Colors and Gobos, Motorized Focus, Smooth Dimming, High-Speed Strobe, Fast Pan/Tilt Movement, DMX512 Compatibility, Sound Active Operation, Durable Metal Housing and Professional Stage Lighting Performance.

Package Includes:

* 2 × Moving Head Beam 380W 17R
* 4 × Mounting Brackets
* 2 × Power Cable
* 1 × User Manual

Note:

Designed for professional stage and entertainment lighting applications. The powerful 17R lamp produces ultra-bright aerial beam effects with long-distance projection, rotating prisms, dynamic gobos and vibrant color effects. Compatible with standard DMX lighting controllers for advanced programming, synchronization and live show control.
