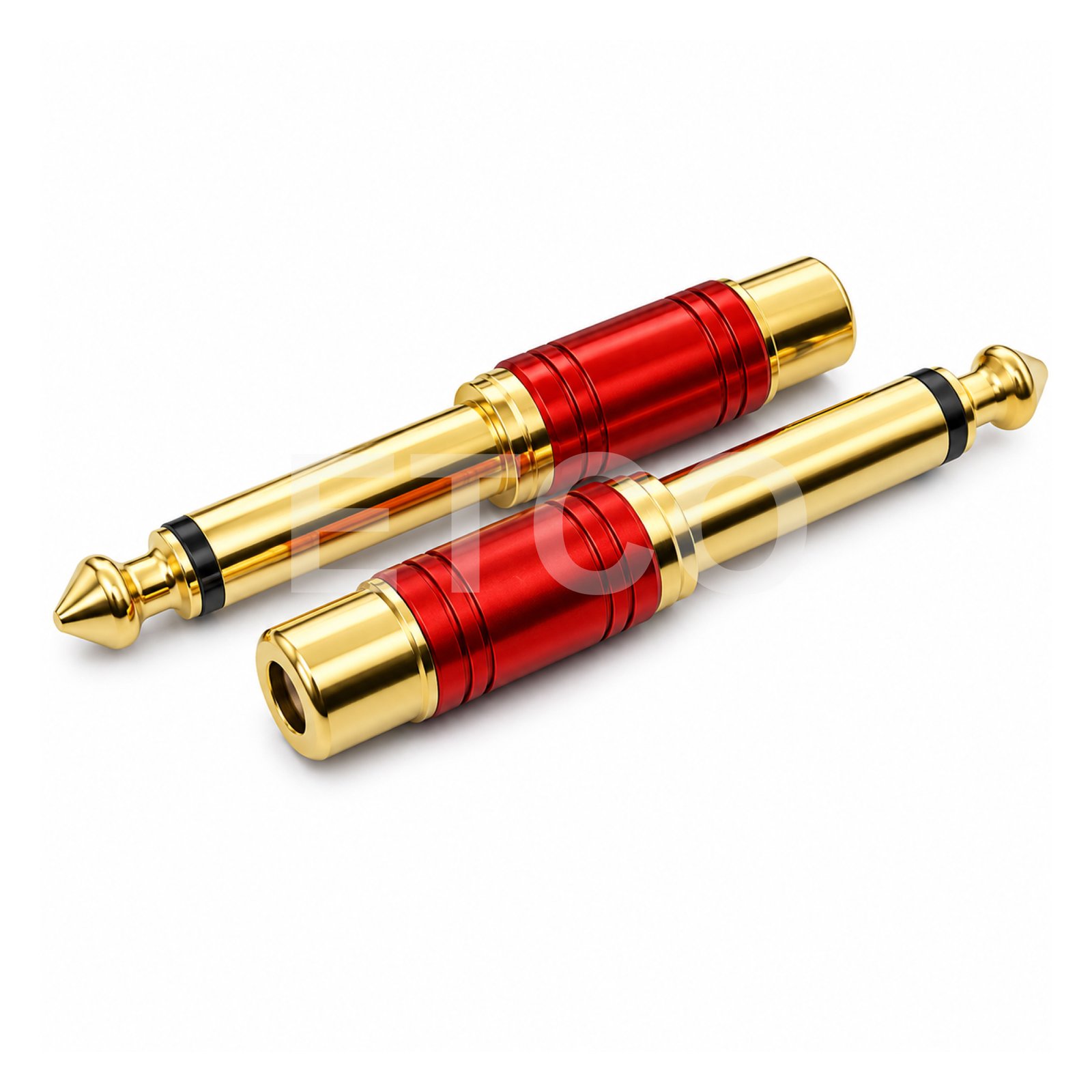

Connection Type: RCA Female to 6.35mm (1/4″) Mono Male Plug
Connector Type: Unbalanced Audio Adapter
Rated Current: Approx. 1–2 A
Rated Voltage: < 50V AC
Contact Resistance: ≤ 5mΩ
Insulation Resistance: > 100 MΩ (initial)
Dielectric Strength: 500V AC
Connector Material: Gold-plated brass contacts for better conductivity
Housing Material: Aluminum alloy (red anodized finish)
Cable Compatibility: Designed for direct plug-in (no cable required)
Signal Type: Mono audio signal (TS – Tip Sleeve)
Service Life: >1000 mating cycles
Temperature Range: -20°C to +70°C
Protection Class: IP20
