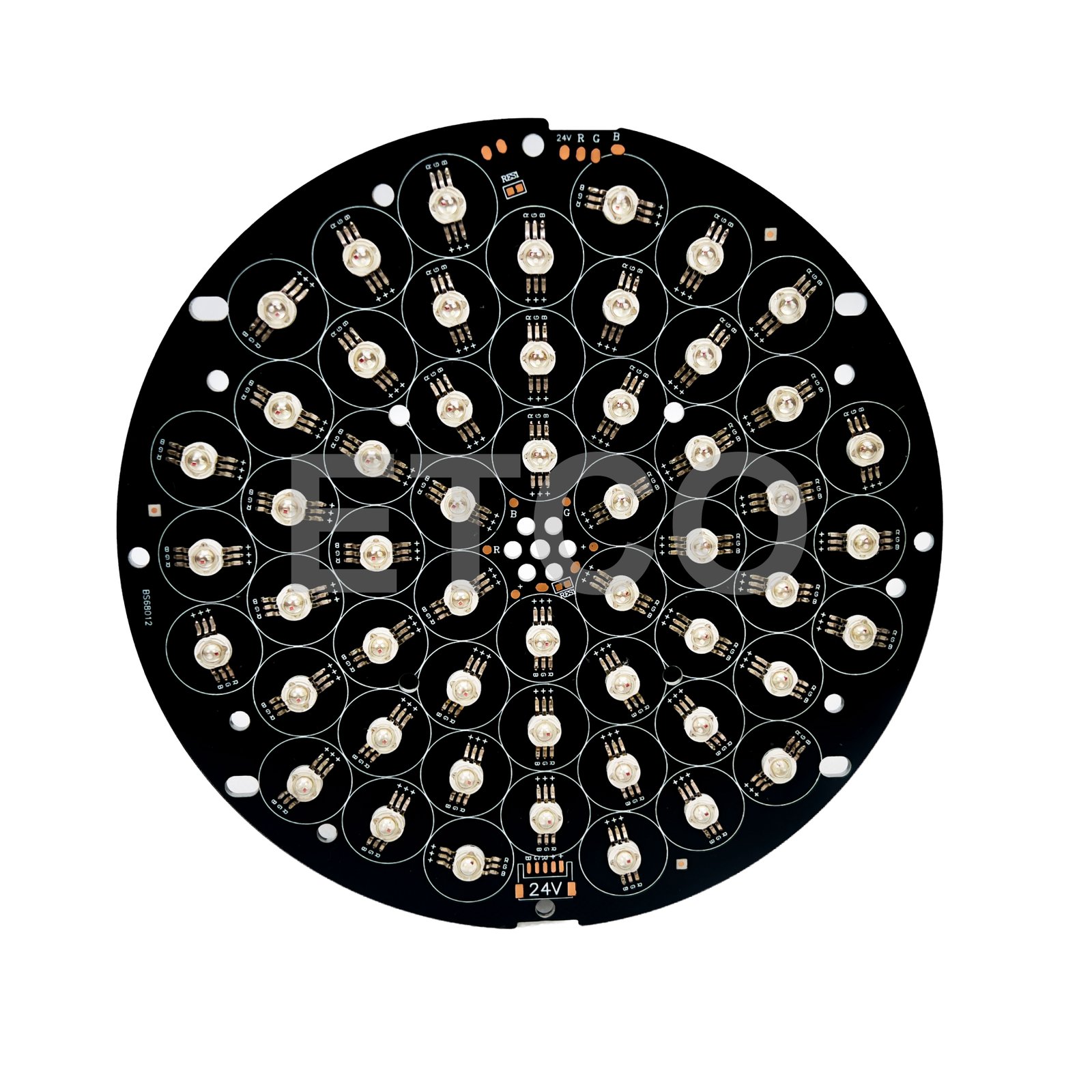

Introducing the ETCO SMD Plate 24V, a round RGB LED board for 24V par lights in Pakistan. It carries 54 high-brightness SMD LEDs that give a smooth, even, wide-angle colour wash. If your par light has dead LEDs, wrong colours, or dark spots, this board brings full output back quickly.
✅ 54 high-brightness RGB SMD LEDs
✅ 24V DC rated voltage
✅ Approx. 80–130W output
✅ Wide ~120° even light spread
✅ FR4 PCB with screw mounting holes
✅ Marked 24V / R / G / B connector pads
Technical Parameters
Product: SMD Plate 24V (RGB LED Board)
Number of LEDs: 54 SMD LEDs
LED Type: High-brightness SMD
Colour: RGB
Rated Voltage: 24V DC
Rated Power: Approx. 80–130W
Beam Angle: Approx. 120°
Control: Needs the fixture's driver / controller board
PCB Material: FR4
Connection: Wired multi-pin connector (24V, R, G, B)
Mounting: Screw holes / panel mount
Service Life: > 30,000 hours
Temperature Range: –20°C to +60°C
Protection: IP20 (indoor use)
The ETCO 24V SMD plate is a round RGB LED board for 24V par lights in Pakistan. First, it carries 54 bright RGB LEDs on a strong FR4 circuit board. As a result, your par light gives a smooth, even colour wash again. However, when old LEDs burn out, the light shows dark spots, wrong colours, or flicker.
Technicians use this board to repair par cans used at weddings, DJ events, and banquet halls. In addition, the marked 24V, R, G, and B pads make wiring simple. Moreover, its 80–130W rating matches lower-power par lights. For example, it suits our PAR 54 2.25W LED par light. Also, for 36V fixtures, check our 36V par light LED board instead. Therefore, repair shops in Lahore, Karachi, and Islamabad keep it in stock. Finally, ETCO Sound & Light delivers nationwide.
What is a 24V SMD plate?
It is the round RGB LED board inside a 24V par light. It produces the light’s colour and brightness.
Can I use it in a 36V par light?
No. Always match the plate voltage with your fixture. So, use our 36V board for 36V lights.
Will it fit my par light?
It fits most 24V RGB par lights with 54 LEDs. However, match the board size, screw holes, and connector first.
What is the price of a 24V SMD plate in Pakistan?
The price depends on quantity. So, contact ETCO Sound & Light on WhatsApp for the latest rates.
Where can I buy it in Pakistan?
You can buy it from ETCO Sound & Light in Lahore. Moreover, we deliver across Pakistan.
No technical parameters added for this product yet.
