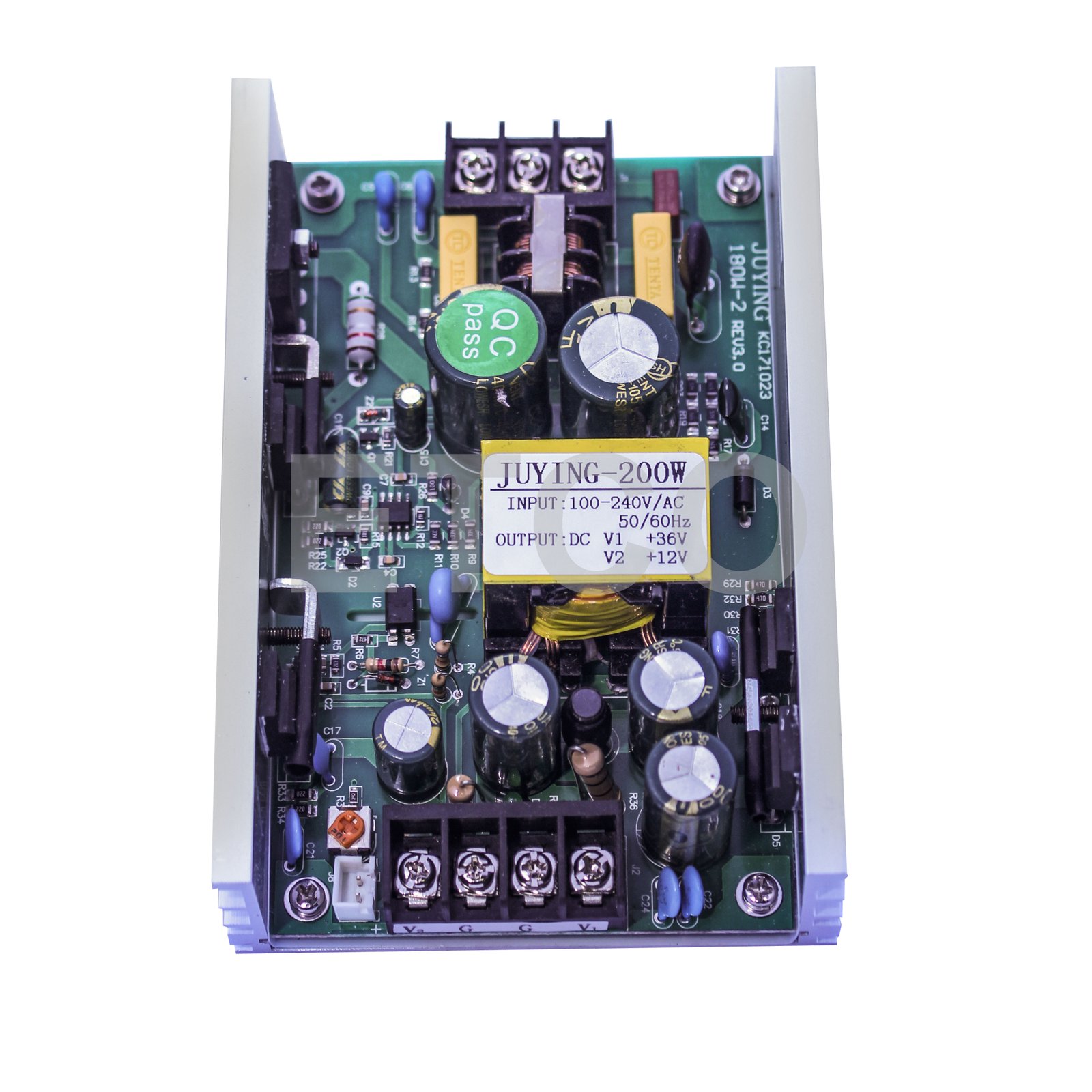

Introducing the ETCO Supply 36V/12V 200W, a JUYING dual output power supply board for LED par lights and stage fixtures in Pakistan. It converts AC mains into two steady outputs: 36V for the LEDs and 12V for the control board, fans, and small motors. If your light won't turn on, resets randomly, or its LEDs look dim, this board is a common fix.
✅ JUYING 200W dual output board
✅ Wide AC 100–240V, 50/60Hz input
✅ Two outputs: V1 +36V DC, V2 +12V DC
✅ Compact 80 × 120 × 40mm size
✅ Aluminium frame for heat dissipation
✅ Screw terminals for input and output
Technical Parameters
Product: Supply 36V/12V 200W
Model: JUYING-200W (36V / 12V version)
Input Voltage: AC 100–240V, 50/60Hz
Outputs: V1 +36V DC, V2 +12V DC
Power: 200W
Size: 80 × 120 × 40mm
Type: Switching power supply (SMPS), dual output
Housing: Aluminium mounting frame
Terminals: Screw terminal blocks
Application: LED par lights, LED effect lights, LED stage fixtures needing 36V + 12V
The ETCO 36V 12V power supply is a dual output board for LED par lights and stage fixtures. First, it converts AC mains into two separate DC outputs. As a result, the LEDs get a steady 36V while the control board, fans, and small motors run on 12V. However, when this board fails, the light may stay dead, reset during a show, or show dim and flickering LEDs.
Technicians use this JUYING board to repair LED fixtures instead of buying new ones. In addition, the wide 100–240V input handles the voltage drops common at wedding venues. Moreover, the aluminium frame spreads heat, which keeps the board stable during long events. The screw terminals also make wiring quick and neat.
Always match both output voltages with your fixture before ordering. For lights that need 36V and 24V, check our 36V/24V JUYING power supply instead. If the LEDs are burnt, replace them with our 36V par light LED board. Therefore, repair shops in Lahore, Karachi, and Islamabad keep spares ready. Finally, ETCO Sound & Light delivers nationwide.
What is a 36V 12V power supply?
It is a dual output power board for LED stage lights. So, it powers both the LEDs and the control board.
How do I know the power supply is faulty?
The light won’t turn on, resets randomly, or the LEDs flicker. However, check the fuse and power cable first.
Can I use the 36V/24V board instead?
No, not unless your light needs 24V. A wrong second output can damage the control board, so always match the voltages.
What is the price of a 36V 12V power supply in Pakistan?
The price depends on quantity. So, contact ETCO Sound & Light on WhatsApp for the latest rates. Also, we offer bulk prices for repair shops.
Where can I buy it in Pakistan?
You can buy it from ETCO Sound & Light in Lahore. Moreover, we deliver across Pakistan.
No technical parameters added for this product yet.
