A modular scaffolding solution of vertical standards, horizontal ledgers, diagonal braces and accessories. The system allows flexible configuration for construction, event stages and temporary structures.

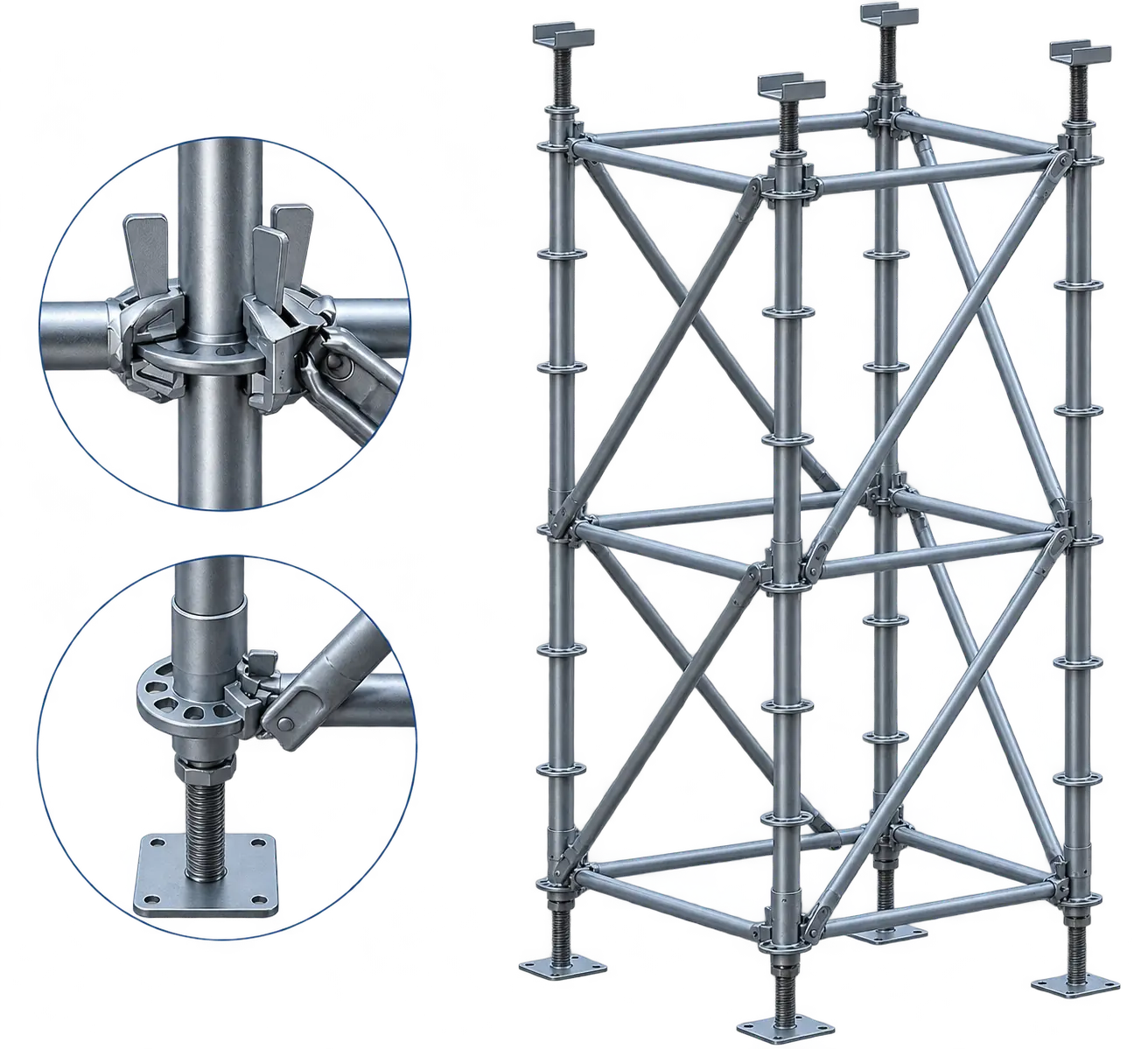

Standards, ledgers, diagonal braces and adjustable jacks connect to form the Ringlock system. Every piece locks at the rosette for a rigid, flexible structure.
The standard, rosette, ledger head and wedge form the basic Ringlock connection. This is the first point to check when comparing system fit and component compatibility.
Vertical tube with rosettes at fixed intervals, the backbone of the structure.
8-hole disc that accepts up to eight connections at fixed and free angles.
Ledger and brace heads slot over the rosette for horizontal and diagonal bracing.
A hammered wedge pin locks the joint rigidly. No bolts, no loose fittings.
View standards, ledgers, braces, jacks, collars, planks and other Ringlock components with available sizes and product data.

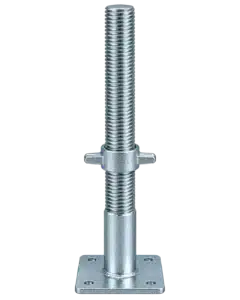

Adjustable base jack is the bottom adjustment and support component used with Ringlock scaffolding.
View Product →

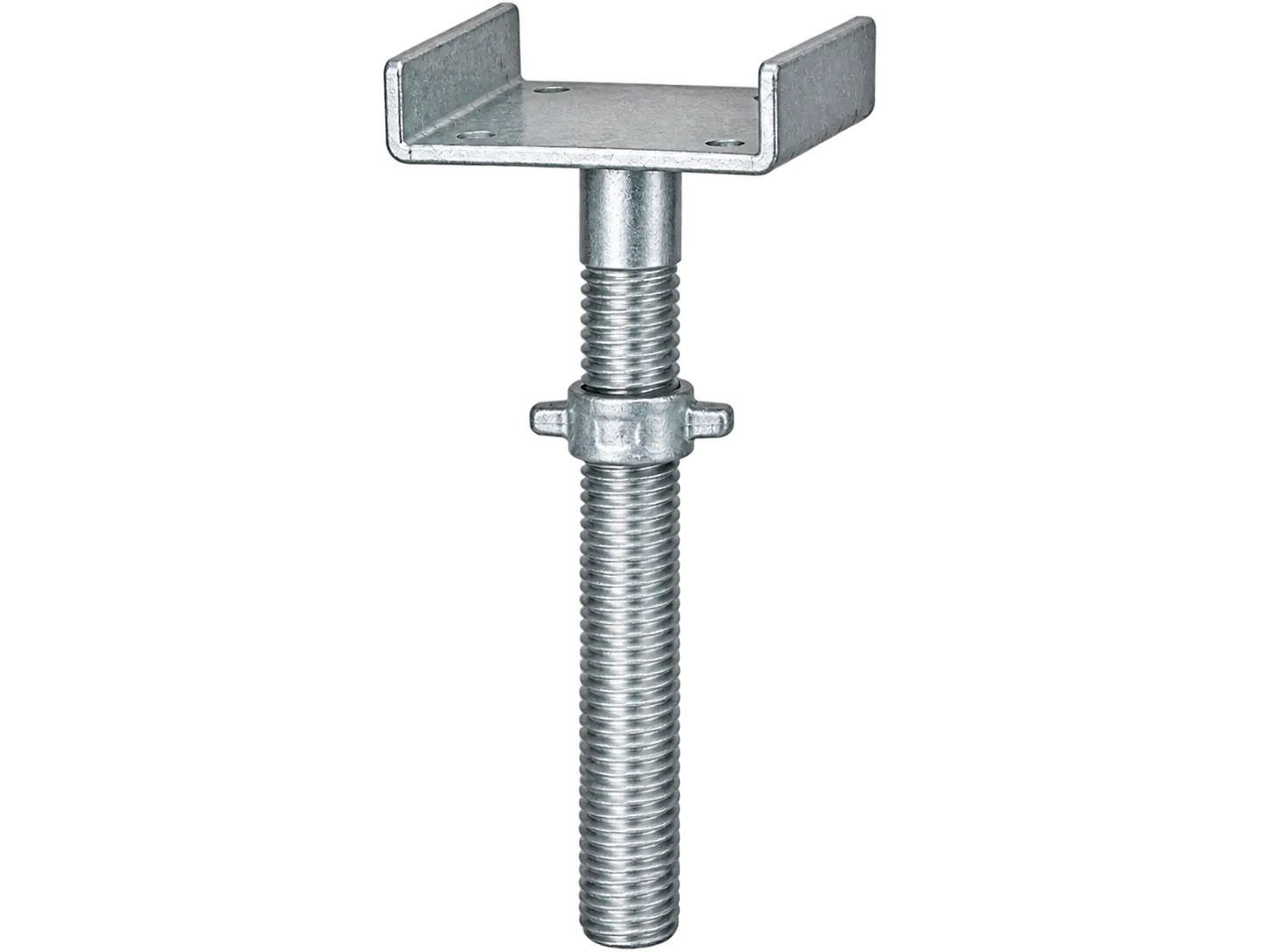

Adjustable U-head jack is a top support component used to receive primary beams and formwork.
View Product →

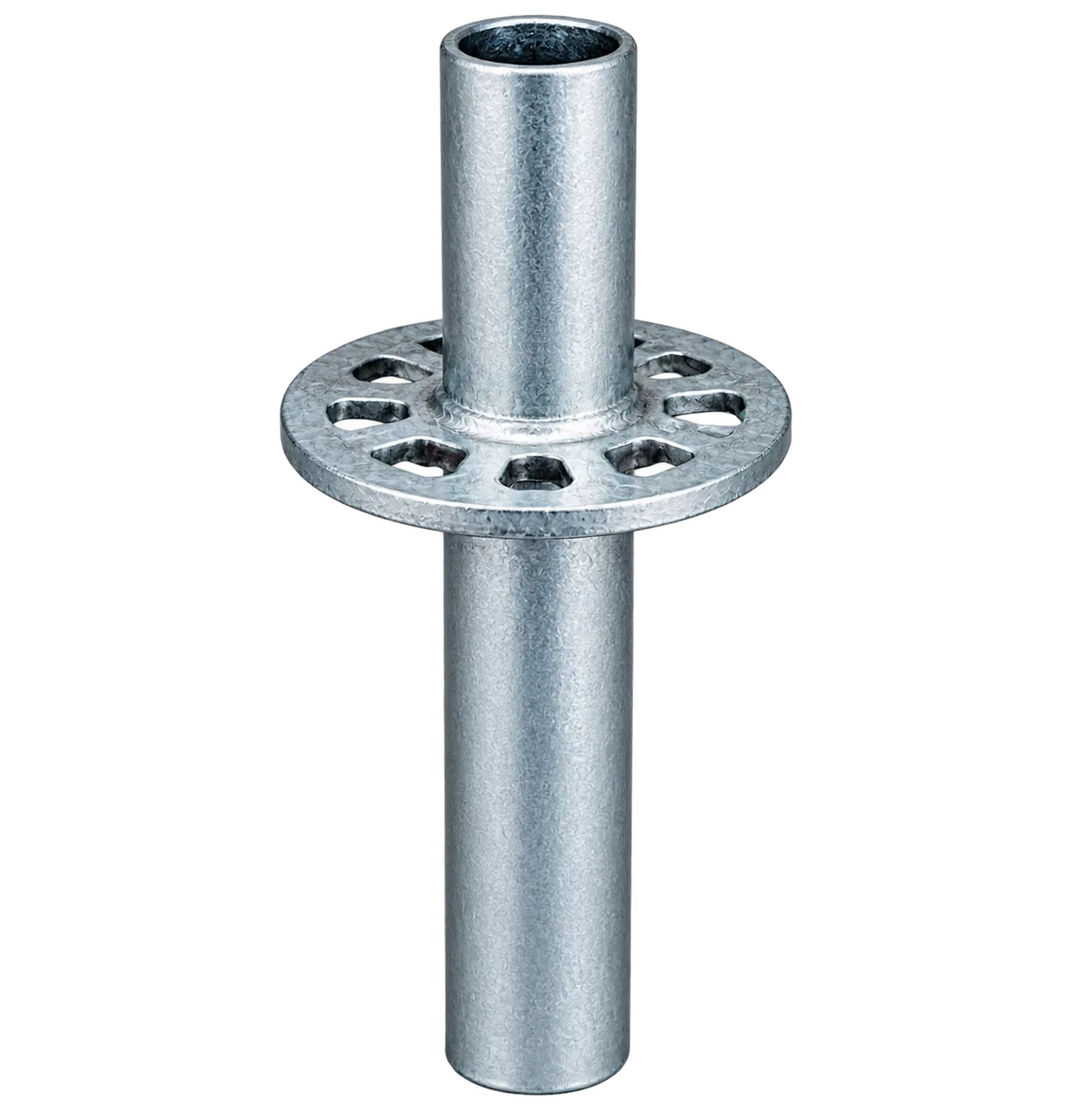

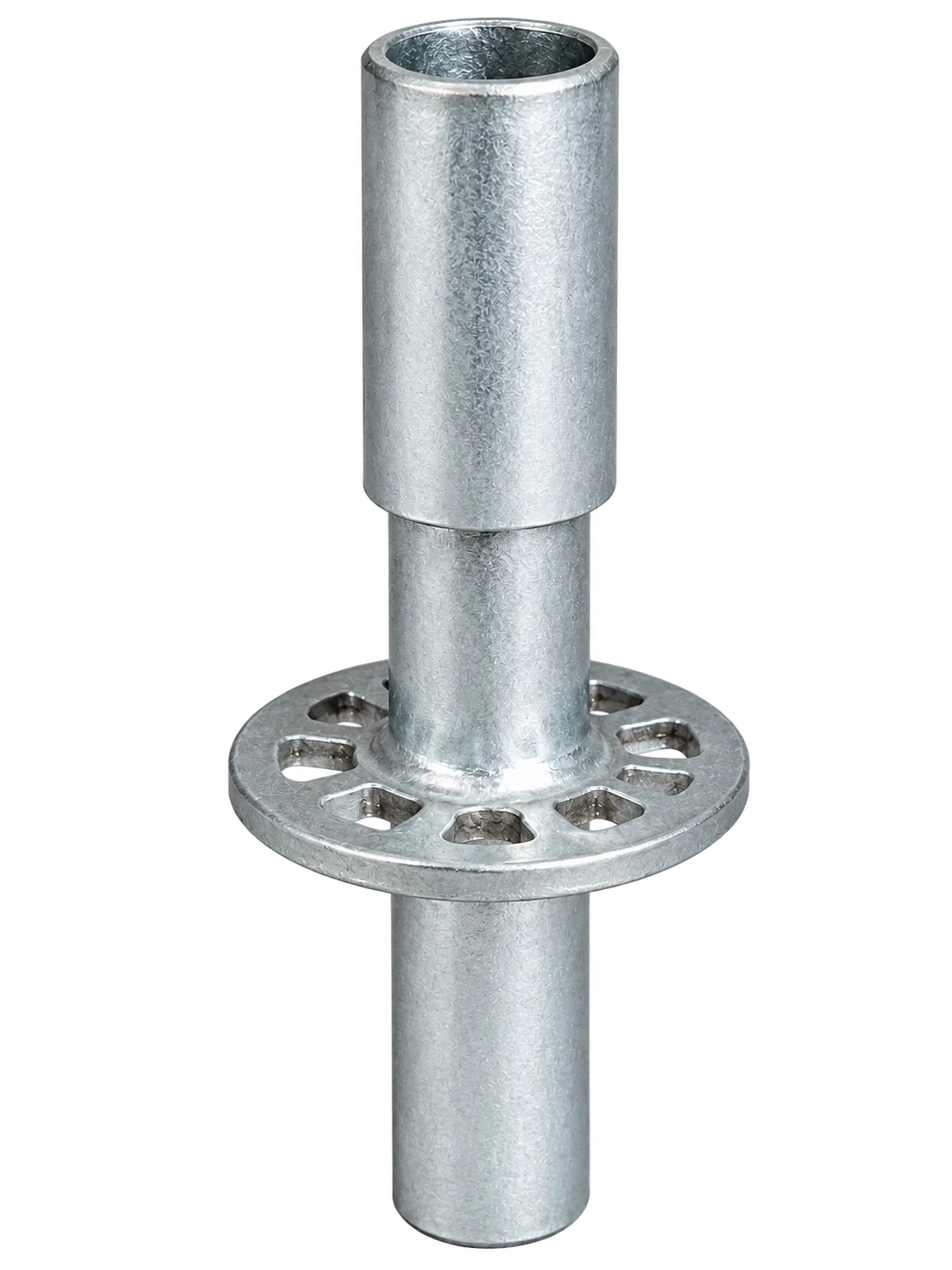

Ringlock base collar is a starter component positioned at the bottom of a Ringlock scaffold to receive the first standard.
View Product →

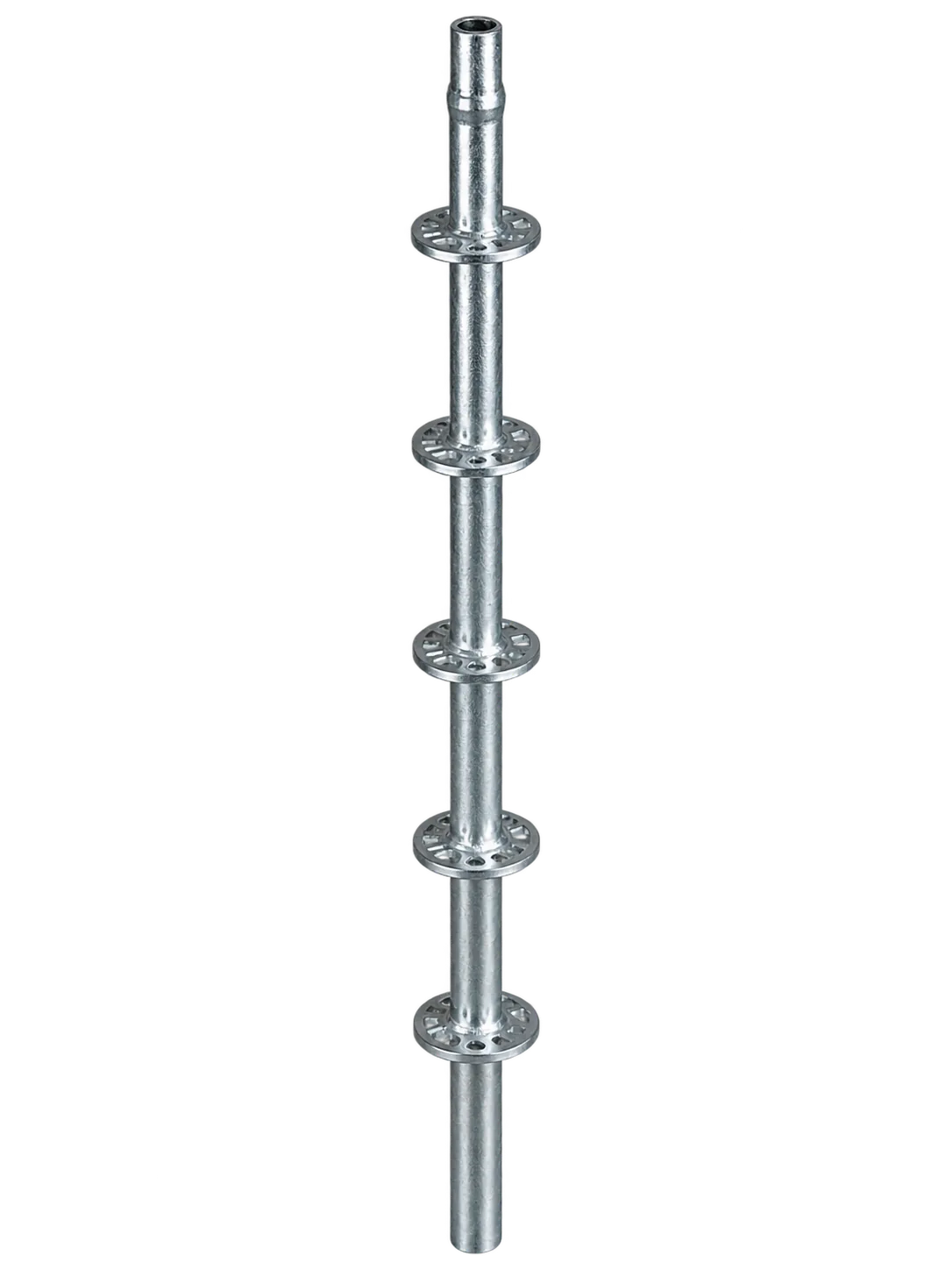

Ringlock standard is the primary vertical component of a modular Ringlock scaffolding system.
View Product →
Ringlock ledger is the horizontal component connecting adjacent standards on the rosette.
View Product →

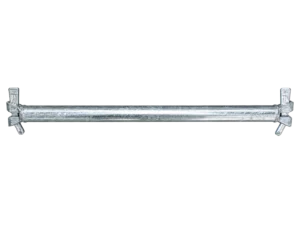

Auxiliary component used with Ringlock standards and ledgers where an extra connection is required.
View Product →

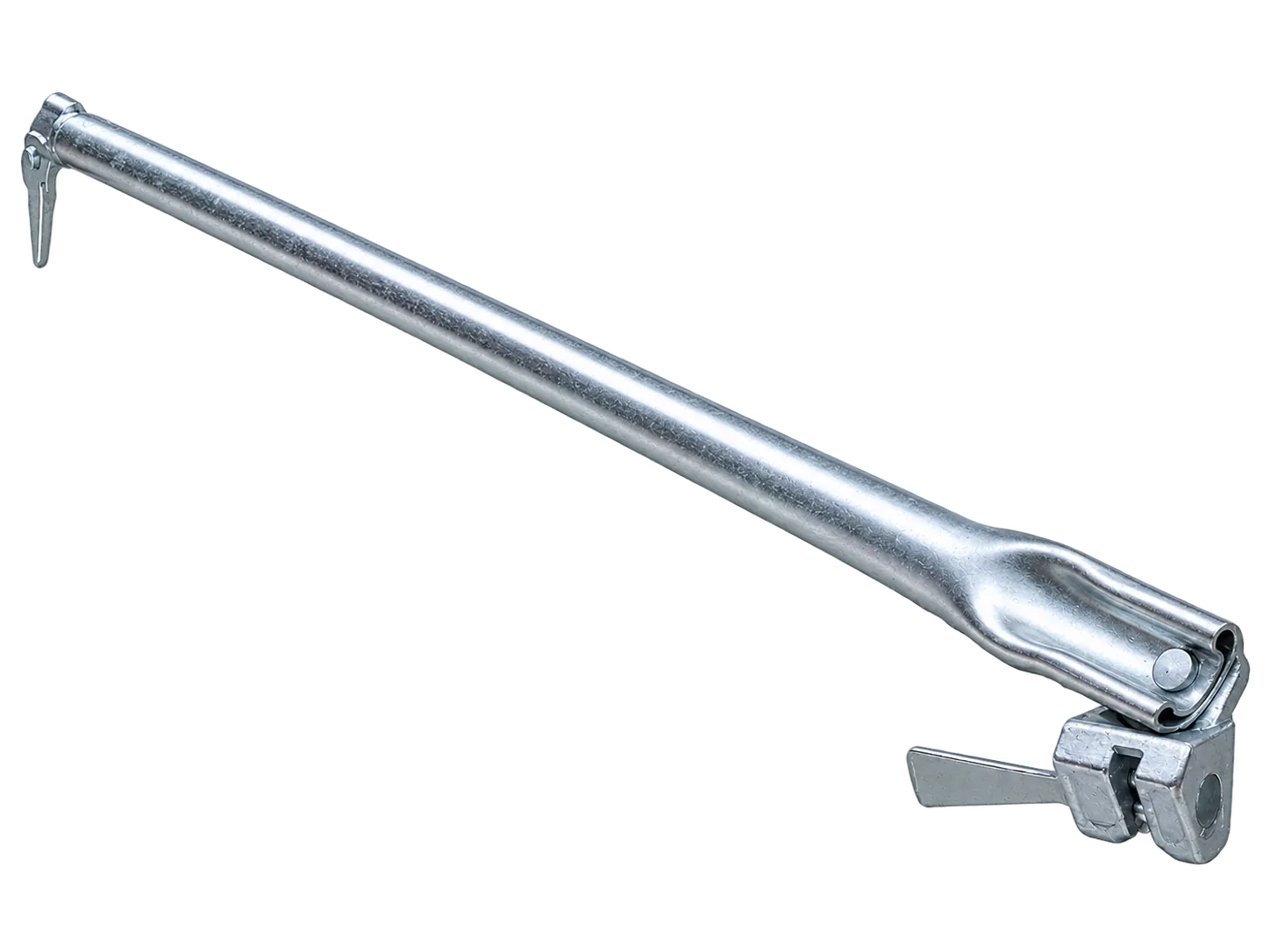

Ringlock diagonal brace is the diagonal bracing component used with standards and ledgers to stabilize each bay.
View Product →

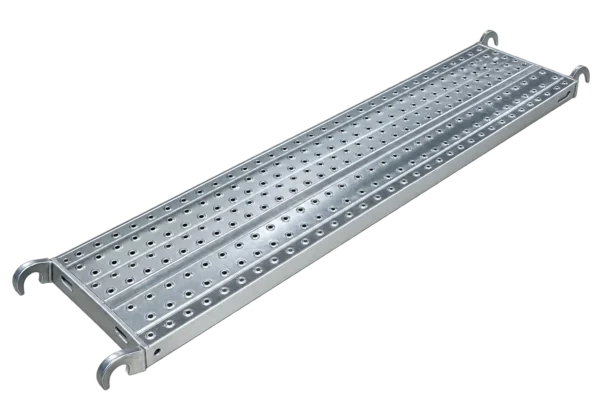

Steel scaffold plank is a platform component available as standard steel plank and hooked plank options.
View Product →

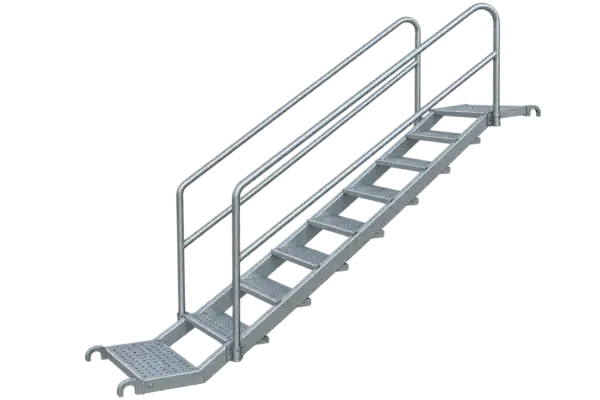

Scaffold staircase is the sectional access component used as part of a modular safety stair tower.
View Product →The 48 Series and 60 Series are identified first by the outside diameter of the standard. Matching components should be selected for the same series.
Current product data uses a 48.3 mm standard outside diameter. Light and fast to handle for stages, access and general construction.
Current product data uses a 60.3 mm standard outside diameter. Heavy-duty capacity for shoring, bridges and high-load structures.
Choose the 48 or 60 Series first, then match the required components and sizes to the project or existing system.
We supply both 48 Series and 60 Series Ringlock components. Select the series required by the project.
Standards, ledgers, diagonal braces, base collars and adjustable jacks from the main system configuration.
Each product page lists available dimensions, specifications and weights.
Send drawings or the component list, sizes, quantities or system matching needs before quotation.

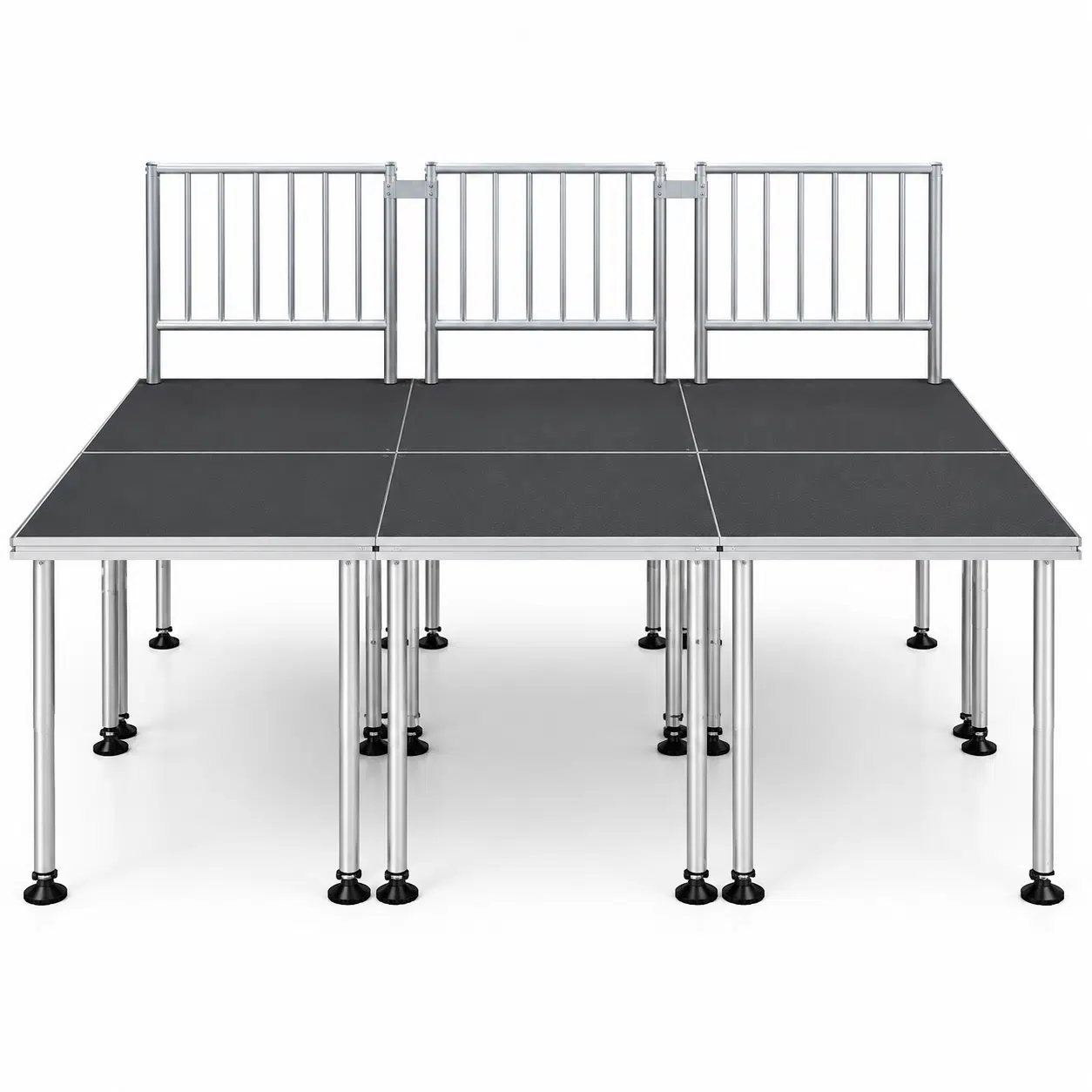

Ringlock is used for car display stages, event platforms, working scaffolds, concrete shoring and temporary structures.

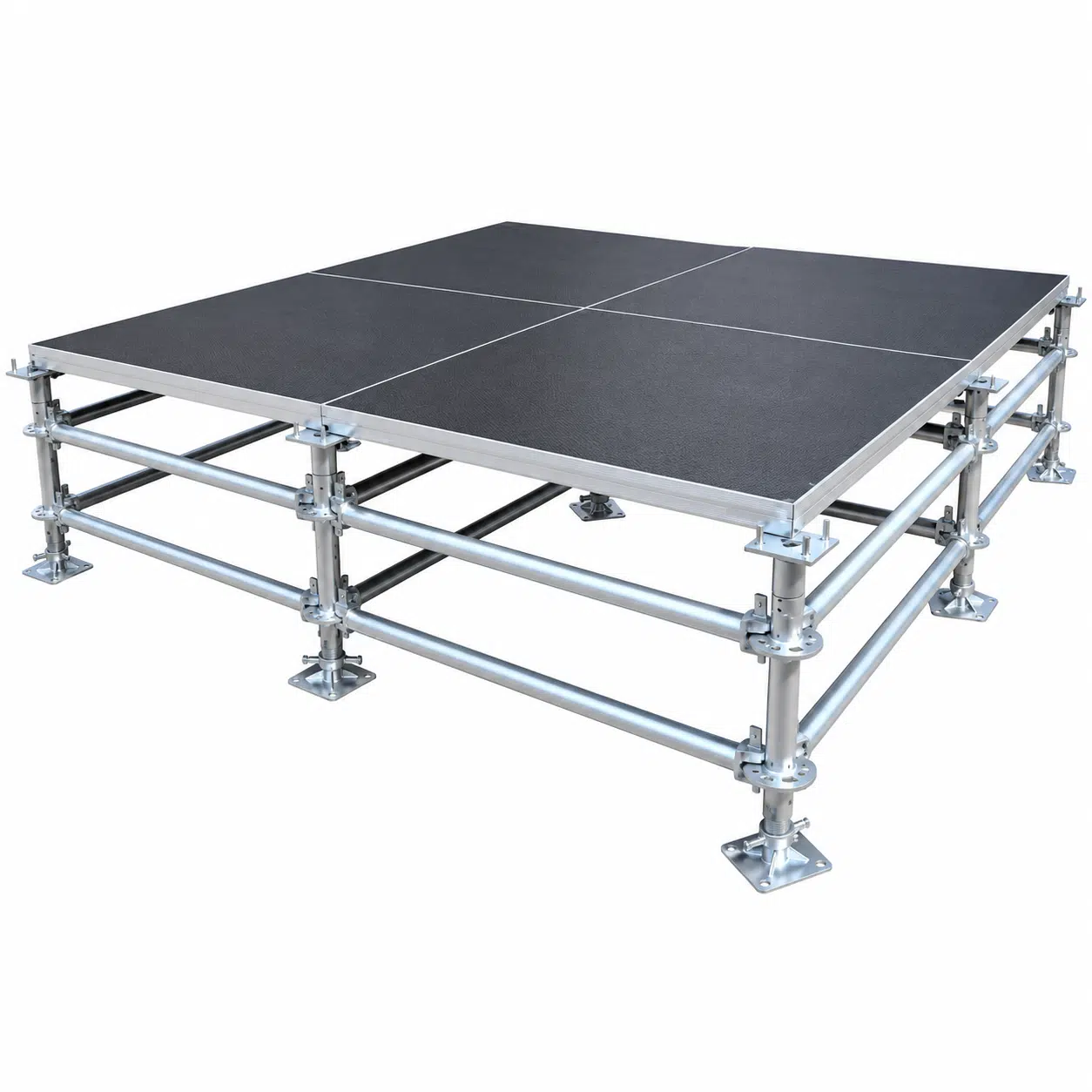

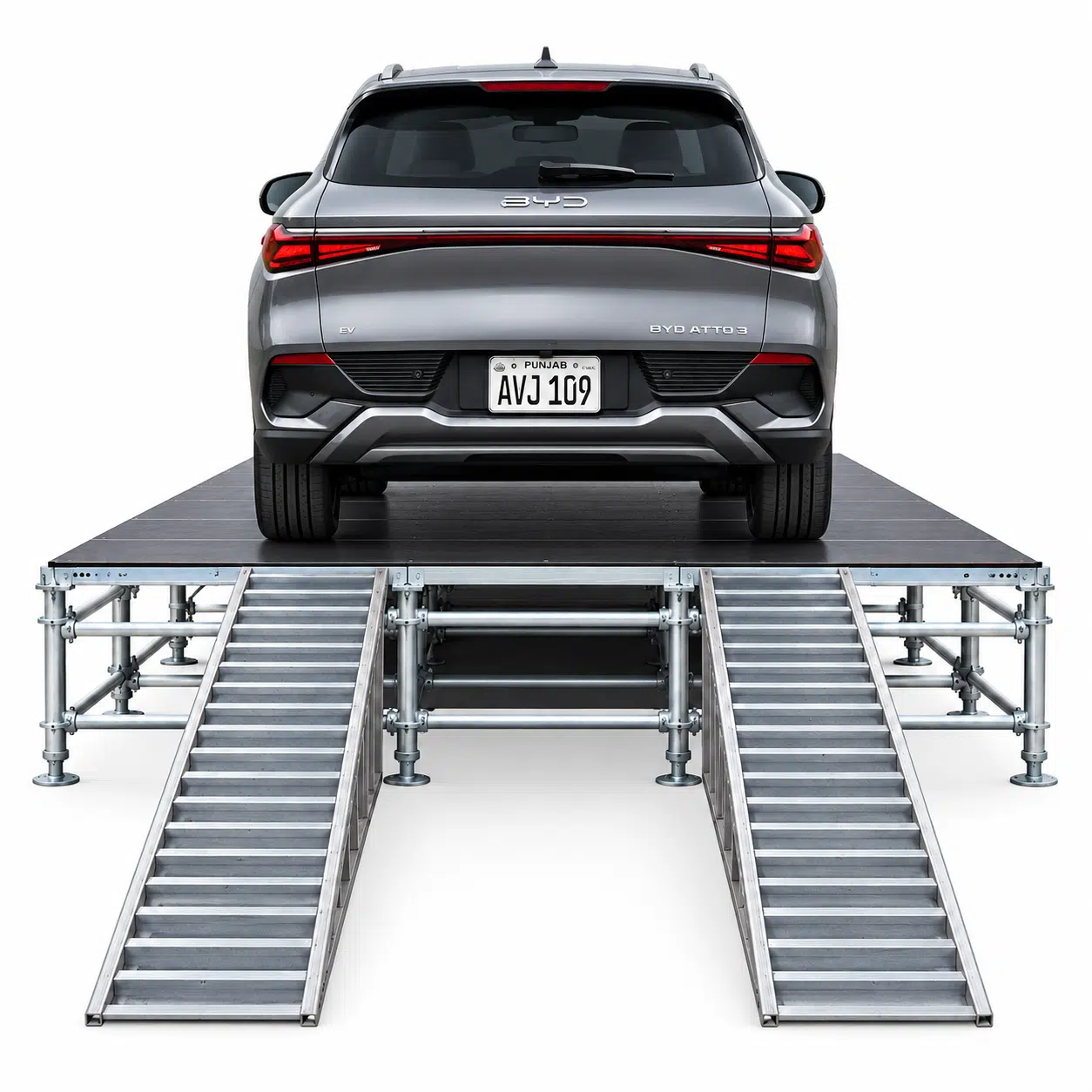

Heavy-load ramps and stage decks for car launches, dealerships and brand activations.
When parts must fit together, matching components can be checked together instead of judging from dimensions alone.
Packing follows the component mix, bundle size and delivery plan. Details are confirmed before dispatch.
Send Your Product List →Component types, sizes and quantities checked before packing.
Components bundled according to shape, length and handling needs.
Loading follows bundle sizes and vehicle capacity for safe transport.
Invoice and packing list provided, with optional on-site installation team.
Quick answers to common product and quotation questions.
The number refers to the outside diameter of the standard (48.3 mm or 60.3 mm). 60 Series carries higher loads for heavy shoring, while 48 Series is lighter and common for stages and access scaffolding.
A basic setup needs base jacks, base collars, standards, ledgers and diagonal braces. Add U-head jacks for beam support, steel planks for working platforms and a staircase for safe access.
Yes. Standard and ledger lengths can be selected to match your bay size and height. Share your requirement and we will suggest the right sizes.
Send the series, required components, sizes, quantities and project location. Drawings or stage dimensions help us prepare an accurate list.
A base jack sits at the bottom to level the scaffold on the ground. A U-head jack sits at the top to hold beams or formwork. Most structures use both.
Send the series, component types, sizes, quantities and any drawings you have. Our team will reply with pricing and availability.
