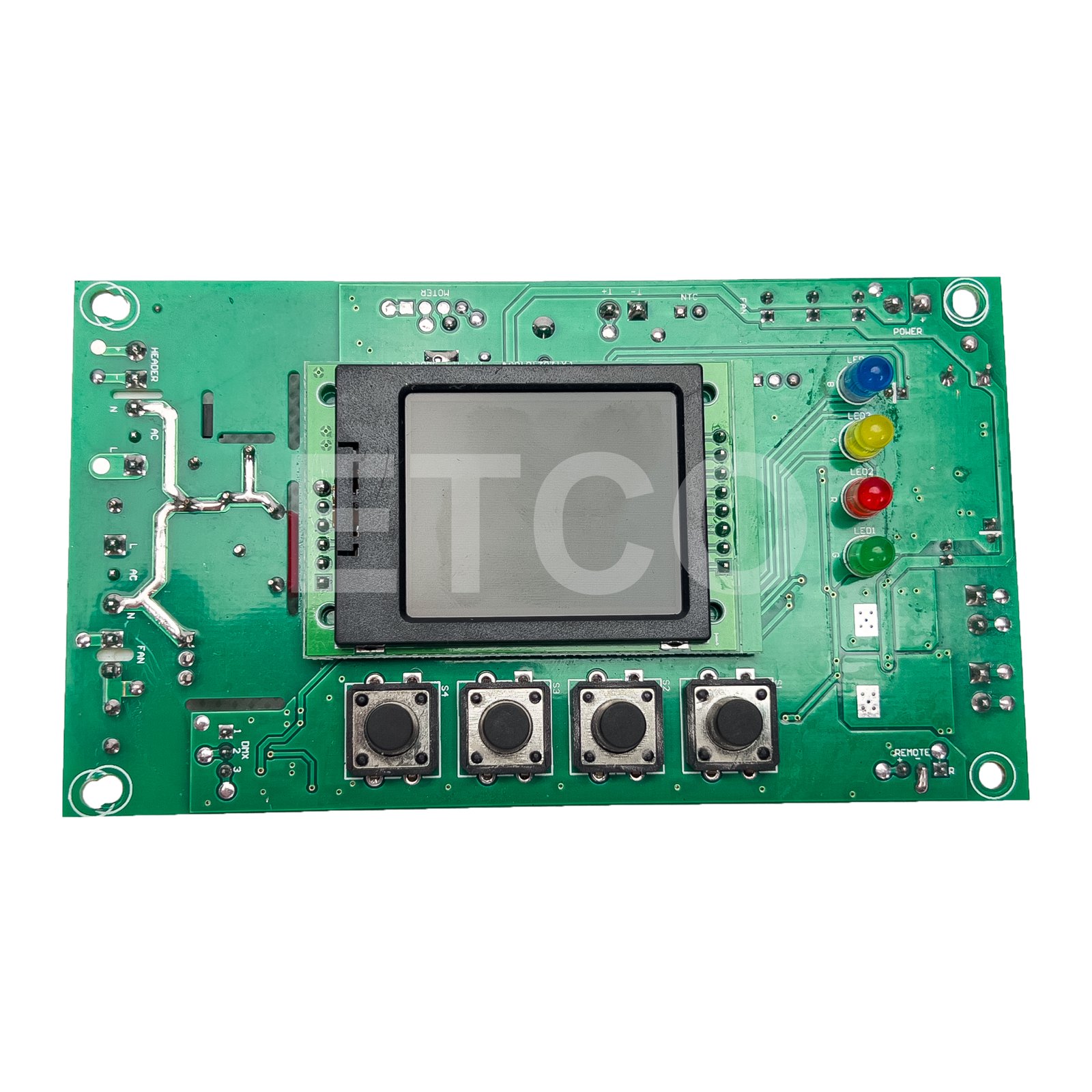

Cold Spark Machine Digital Control Card

Technical Parameters

Voltage: DC 24V Operating Supply
Display Type: Digital LCD Display Module with Protective Front Housing
Control Interface: 4-Key Push Button Navigation System (Menu, Up, Down, Enter)
Board Type: PCB Design (Display Control Board/Main Control Board)
Communication: DMX512 and Wireless Remote Control Compatible Circuitry
Processor: Integrated Microcontroller-Based Digital Control System
Status Indicators: LED Status Indicators for Ready, Heat, Fault and DMX Functions
Connectivity: Multi-Pin Plug-and-Play Connectors for Sensors, Heating System, Fan and Power Interfaces
Control Functions: Temperature Management, Spark Output Control, DMX Address Configuration and System Monitoring
Cooling Control: Dedicated Fan Control Circuit for Stable Cooling Operation
Safety Features: Fault Detection, Overheat Protection and Automatic System Monitoring
Components: Industrial-Grade Capacitors, MOSFET Drivers, Voltage Regulation Circuit and High-Quality Electronic Components
Construction: High-Density Fiberglass PCB with Precision SMT Technology
Application: Designed for Cold Spark Fountain Machines to Control Heating, Spark Generation, Cooling Fan Operation and DMX Communication
Installation: Easy Replacement Design with Pre-Wired Connector Ports
Maintenance: Low Maintenance Electronic Control System with Reliable Long-Term Performance
