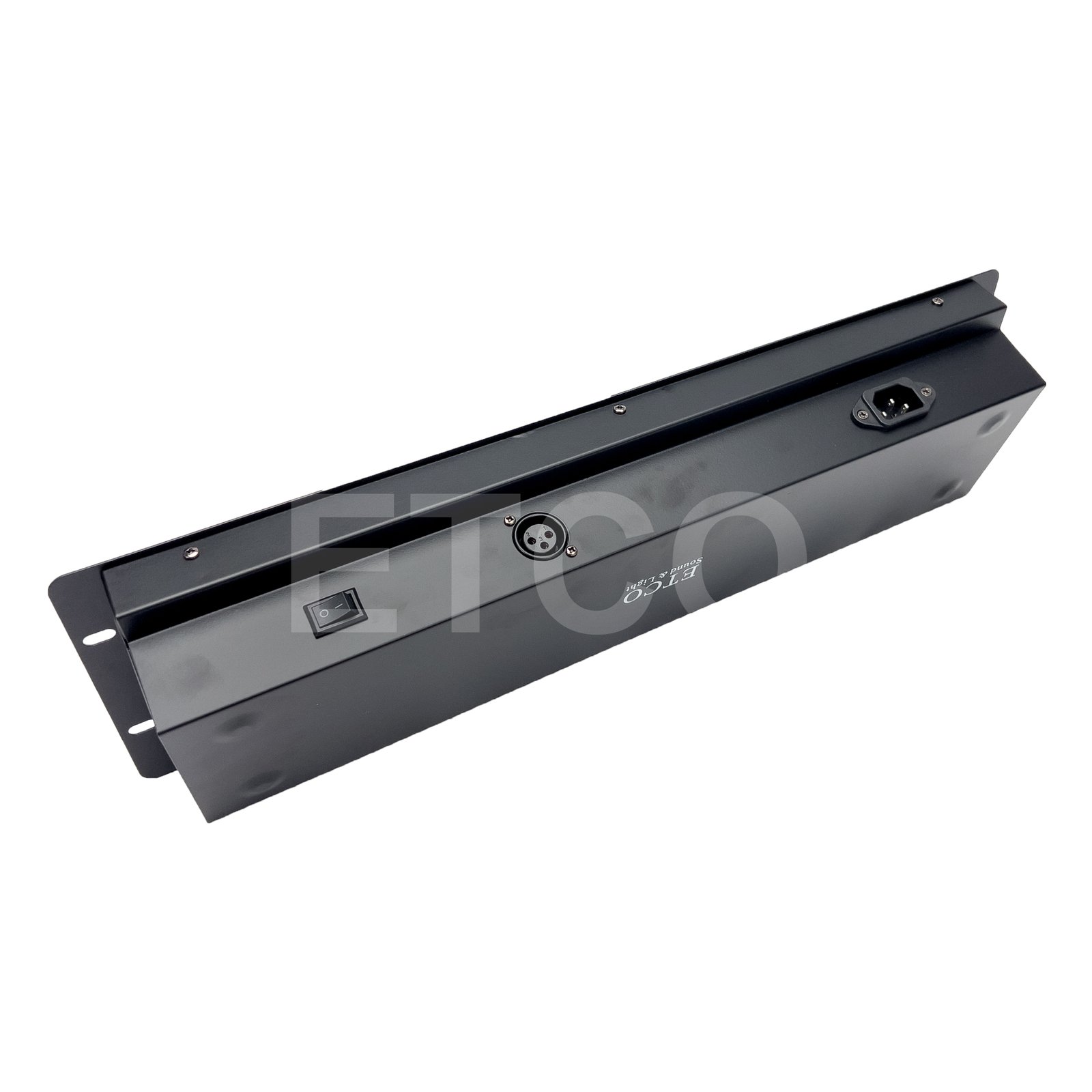

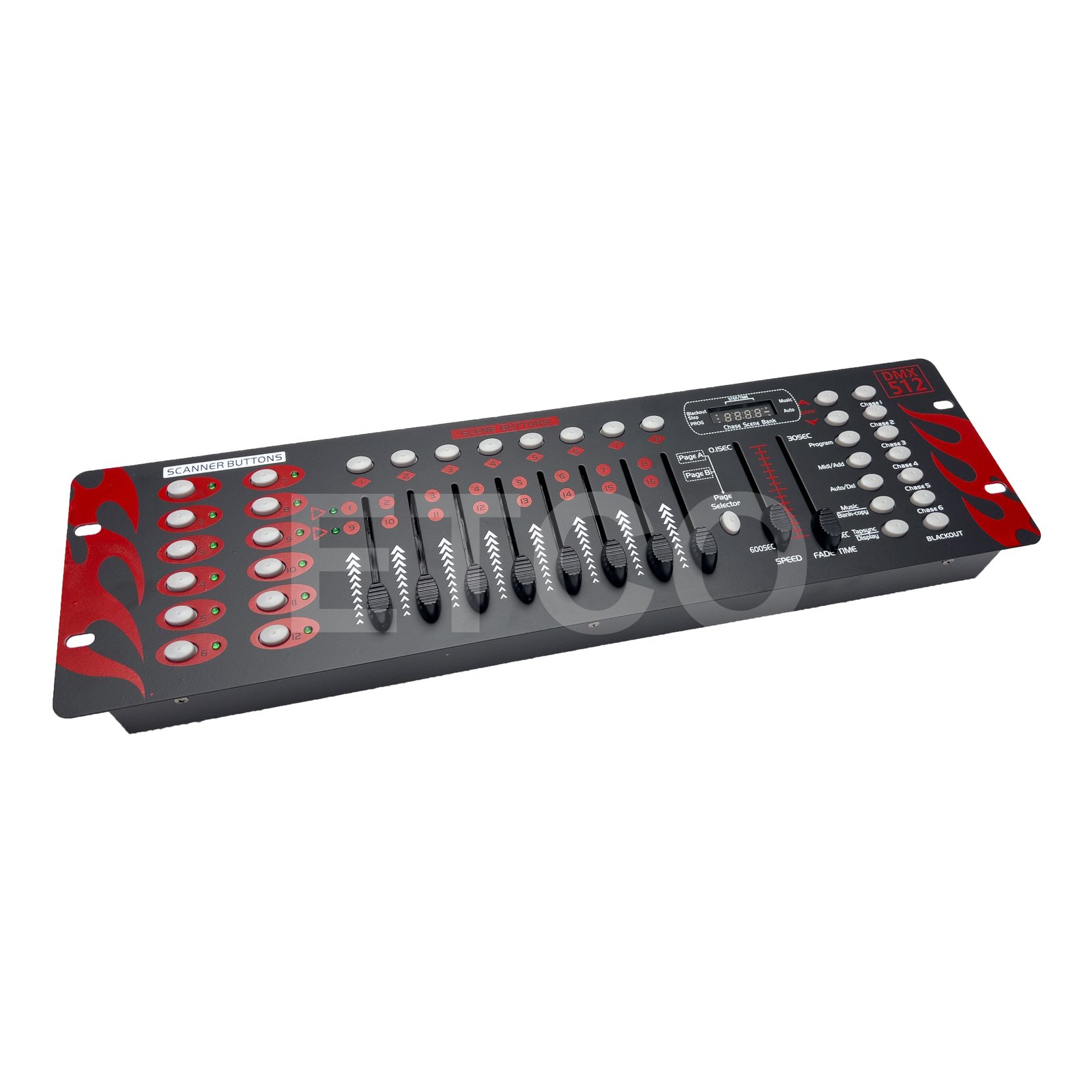

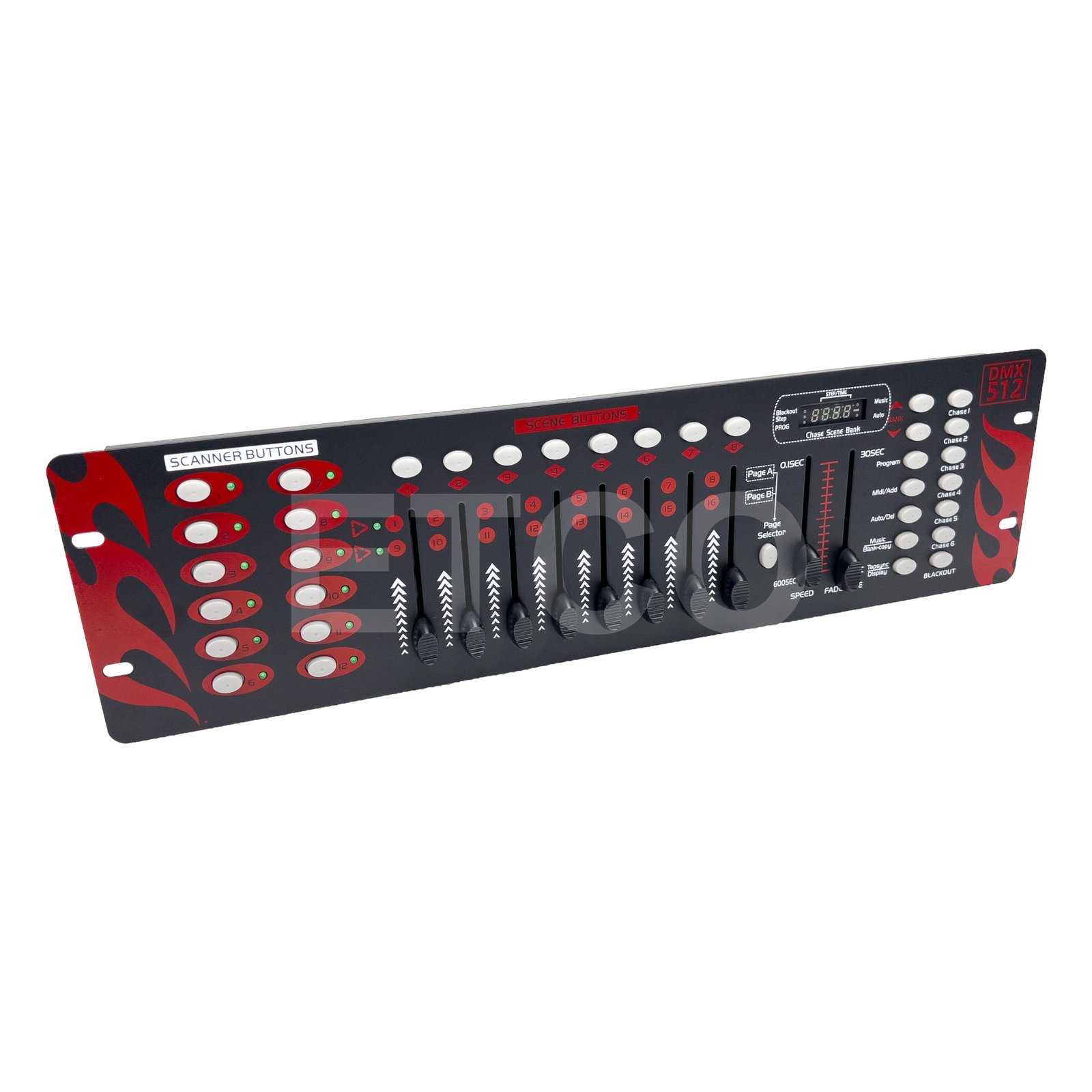

Introducing the ETCO DMX 512 Lighting Controller, the most popular 192-channel DMX console for stages and events in Pakistan. It controls up to 12 fixtures with 16 channels each, including moving heads, par lights, and lasers. Plus, 240 programmable scenes, chases, MIDI, and sound triggering make it easy to create and repeat every show.
✅ 192 DMX channels for up to 12 fixtures
✅ 12 fixture (scanner) buttons for quick selection
✅ 30 banks × 8 scenes = 240 programmable scenes
✅ 8 faders for precise manual control
✅ Chases with speed and fade time control
✅ Built-in mic, MIDI, blackout, and 4-digit LED display
Technical Parameters
Model: DMX 512 Lighting Controller
Voltage: AC 100–240V, 50/60Hz
Channels: 192 DMX (12 fixtures × 16 channels)
Banks / Scenes: 30 banks, 8 scenes per bank
Faders: 8 channel faders
Chases: Programmable, manual or MIDI run
Speed / Fade: Speed and fade time faders
Sound Trigger: Built-in microphone
Auto Mode: SYNC key and SPEED fader
MIDI: MIDI interface for remote control
Display: 4-digit LED
Blackout: Manual or MIDI
DMX Output: Polarity selection
Dimensions: 482 × 132 × 73 mm (19-inch rack size)
The ETCO DMX 512 controller is the go-to lighting desk for events across Pakistan. First, it offers 192 DMX channels, so you can run up to 12 fixtures with 16 channels each. As a result, one compact console controls moving heads, par lights, lasers, and effects together. In addition, 12 fixture buttons let you select lights quickly during a live show.
Lighting operators use this console for weddings, DJ events, clubs, and small concerts. Also, 30 banks with 8 scenes each give you 240 looks to save and recall. Moreover, chases, speed, and fade time help you create smooth, moving shows. For bigger rigs with more lights, check our DMX 384B controller. It also pairs perfectly with our SK Sultan par light range.
The built-in microphone triggers scenes with the music, while MIDI connects it to DJ software. Therefore, rental businesses in Lahore, Karachi, and Islamabad trust it as their everyday lighting desk. Finally, ETCO Sound & Light offers expert support and delivers nationwide.
What is a DMX 512 controller?
It is a lighting console that controls DMX lights like moving heads and par cans. This model offers 192 channels for up to 12 fixtures.
Why is it called DMX 512 if it has 192 channels?
DMX512 is the name of the lighting signal standard. So, the name shows the protocol, while the desk itself controls 192 channels.
Should I choose DMX 512 or DMX 384B?
Choose DMX 512 for up to 12 fixtures. However, pick DMX 384B when you need to control up to 24 fixtures.
What is the price of a DMX 512 controller in Pakistan?
The price depends on quantity. So, contact ETCO Sound & Light on WhatsApp for the latest rates.
Where can I buy it in Pakistan?
You can buy it from ETCO Sound & Light in Lahore. Moreover, we deliver across Pakistan.
