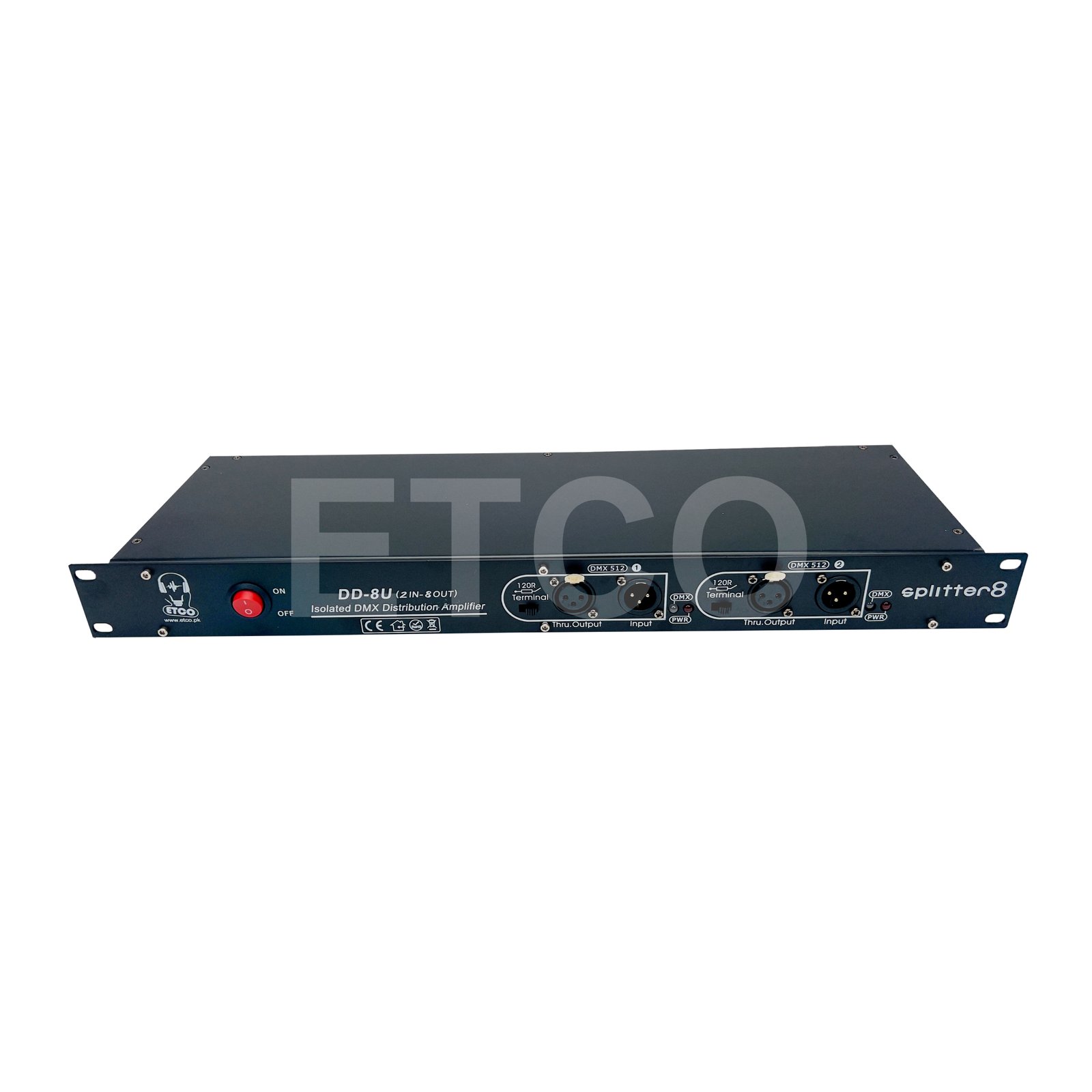

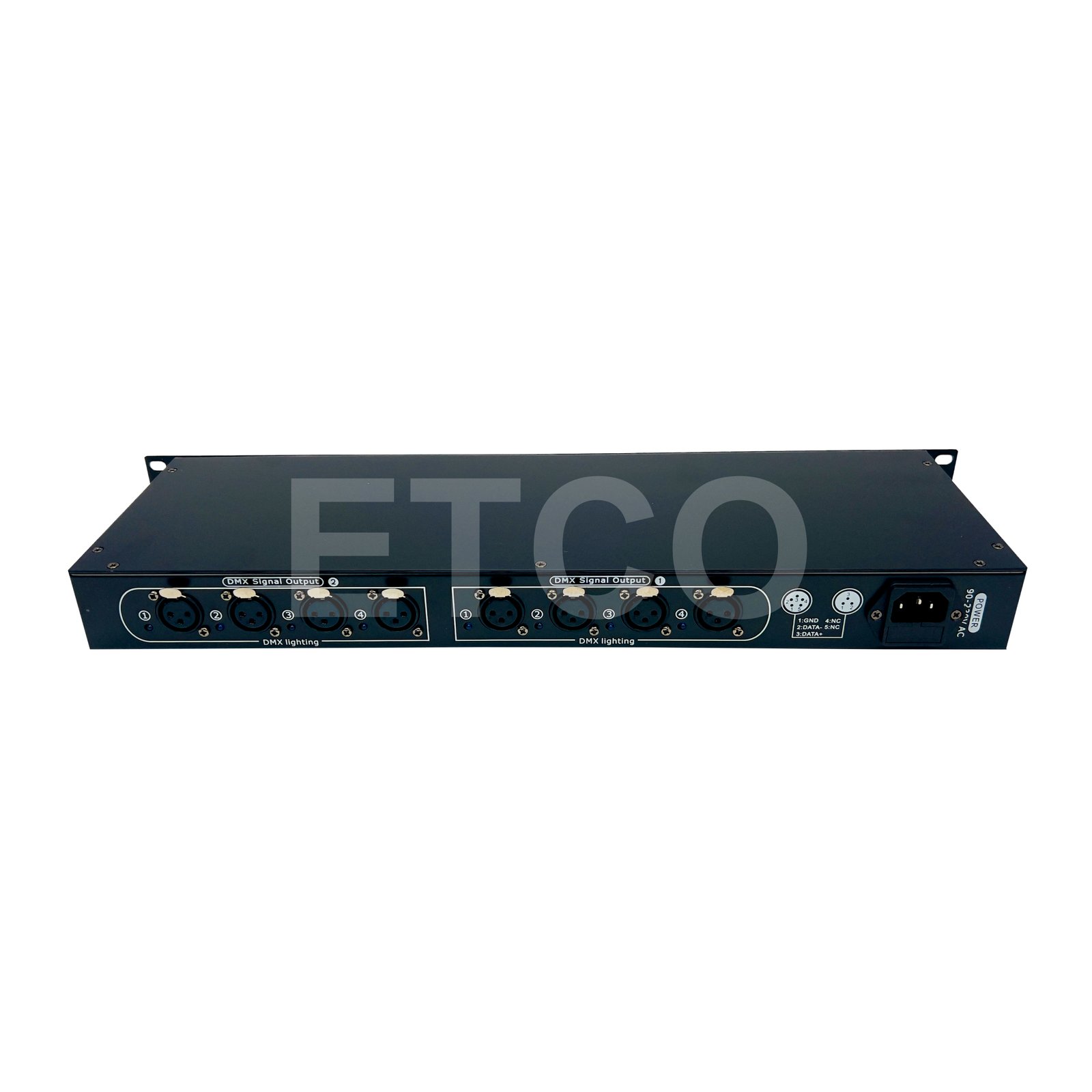

DMX Splitter + Isolator (DD-8U)

**DMX Protocol:** DMX512 Compatible
**Input Ports:** 2 × DMX512 Inputs
**Output Ports:** 8 × Optically Isolated DMX Outputs (4 Outputs per Input)
**Signal Distribution:** 2 Independent DMX Universes
**Signal Isolation:** Full Optical & Electrical Isolation Between Inputs and Outputs
**Termination:** Built-in 120Ω DMX Termination Switch for Each Input
**Through Port:** 2 × DMX Thru Outputs
**Data Transmission:** High-Speed, Stable & Noise-Free DMX Signal Distribution
**Protection:** Short Circuit, Signal Interference & Ground Loop Protection
**Status Indicators:** Power & DMX Signal LED Indicators
**Connectors:** 3-Pin XLR DMX Connectors
**Mounting Type:** Standard 19" Rack Mount Design
**Power Supply:** AC 90–230V / 50–60Hz
**Housing Material:** Heavy-Duty Metal Chassis
**Applications:** Stage Lighting, Concerts, Theatres, Broadcast Studios, Clubs, Event Productions, Architectural Lighting & Professional DMX Networks
**Product Dimensions:** Standard 1U Rack Mount Size
**Color:** Black

### **Product Description**

The **DD-8U DMX Splitter + Isolator** is a professional-grade DMX512 signal distribution amplifier designed to provide reliable and interference-free DMX signal management for lighting control systems. Featuring **2 independent DMX inputs and 8 optically isolated outputs**, it allows a single DMX signal to be safely distributed across multiple lighting fixtures and control lines while maintaining signal integrity.

Built with **full electrical and optical isolation**, the DD-8U helps eliminate ground loops, reduce signal interference, and protect connected equipment from electrical faults. Each input includes a **120Ω termination switch** and dedicated **DMX Thru output** for flexible system integration. The rugged **1U 19-inch rack-mount metal chassis** ensures durability and dependable performance in demanding professional environments.

Ideal for **stage lighting, live events, theatres, concerts, clubs, broadcast studios, and architectural lighting installations**, the DD-8U delivers stable, high-speed DMX signal distribution for professional lighting applications.
