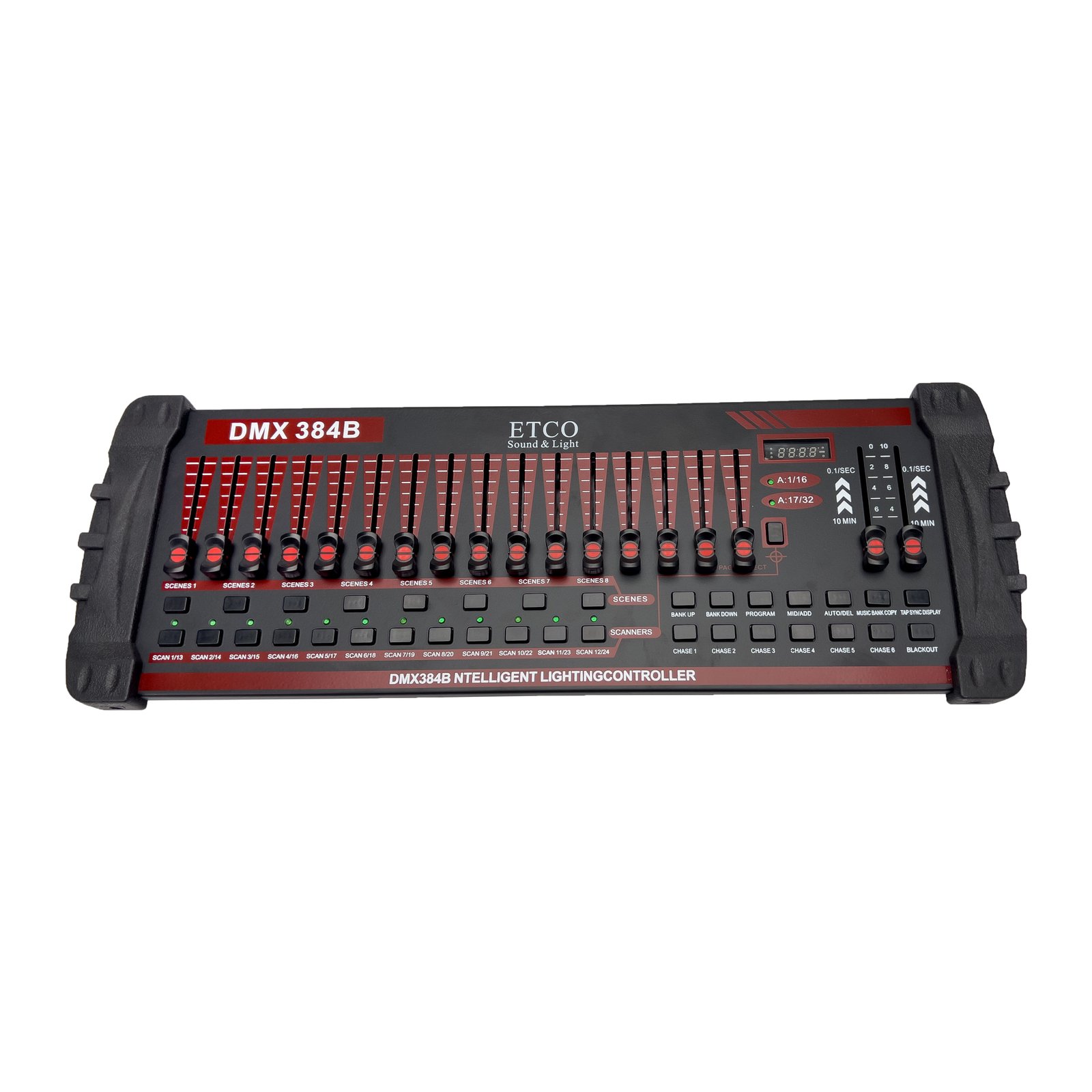

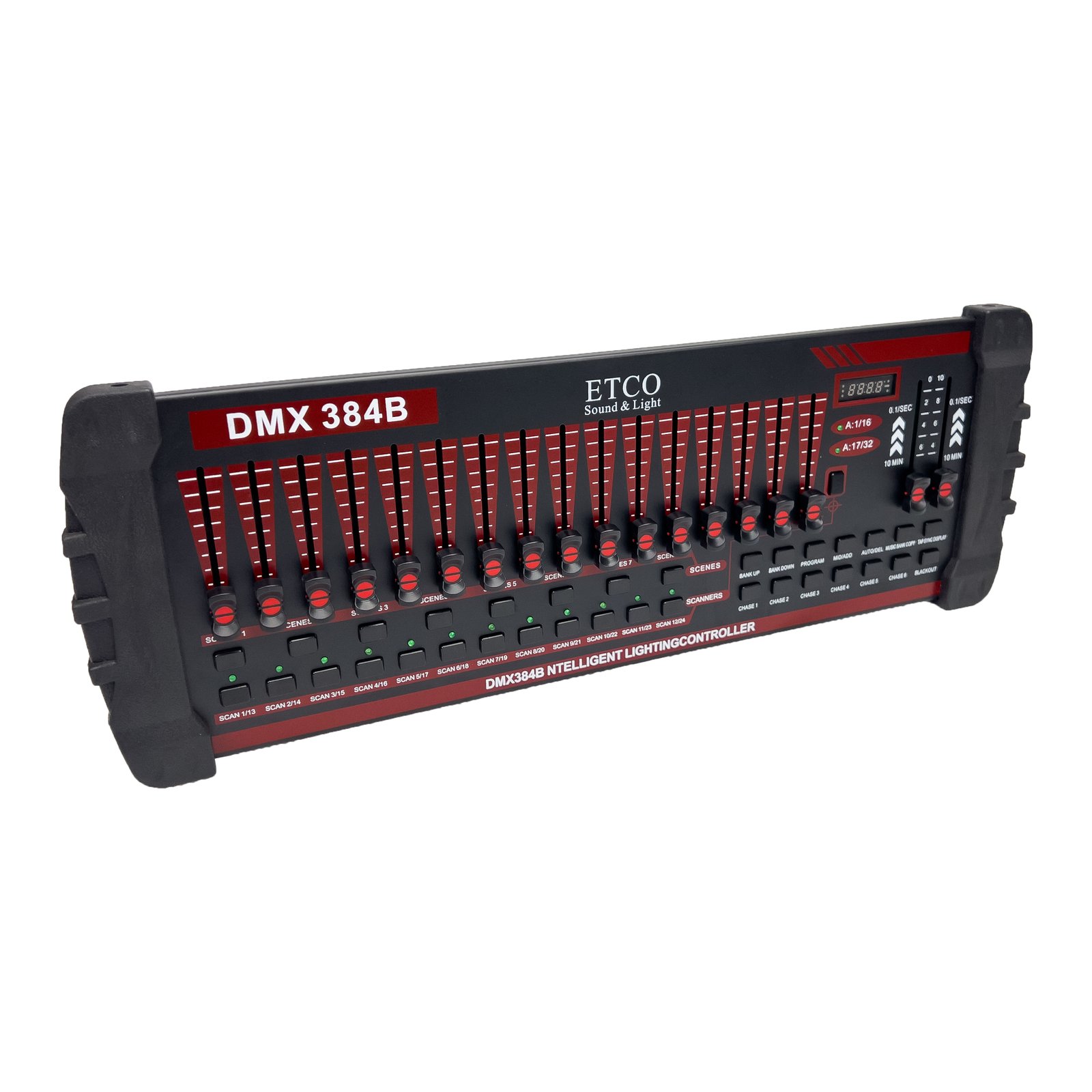

384A B Console

Voltage: DC9V 1000mA
DMX512/1990 Signal Output
384 control channels, capable of controlling 24 fixtures with 16 channels each
30 banks, with 8 programmable SCENES per bank
16 adjustable potentiometers for output size control
Ability to recall the previous Chase or Bank after power restoration
Built-in microphone for sound triggering
In auto-trigger mode, tap the SYNC key or adjust the SPEED potentiometer to determine the auto-trigger time Equipped with a MIDI interface for MIDI signal control
4-digit LED display screen
Blackout function can be controlled manually or via MIDI
remote control
Programming and running of CHASES can be done manually or via MIDI remote control
Output delay function, adjustable using the FADE TIME potentiometer

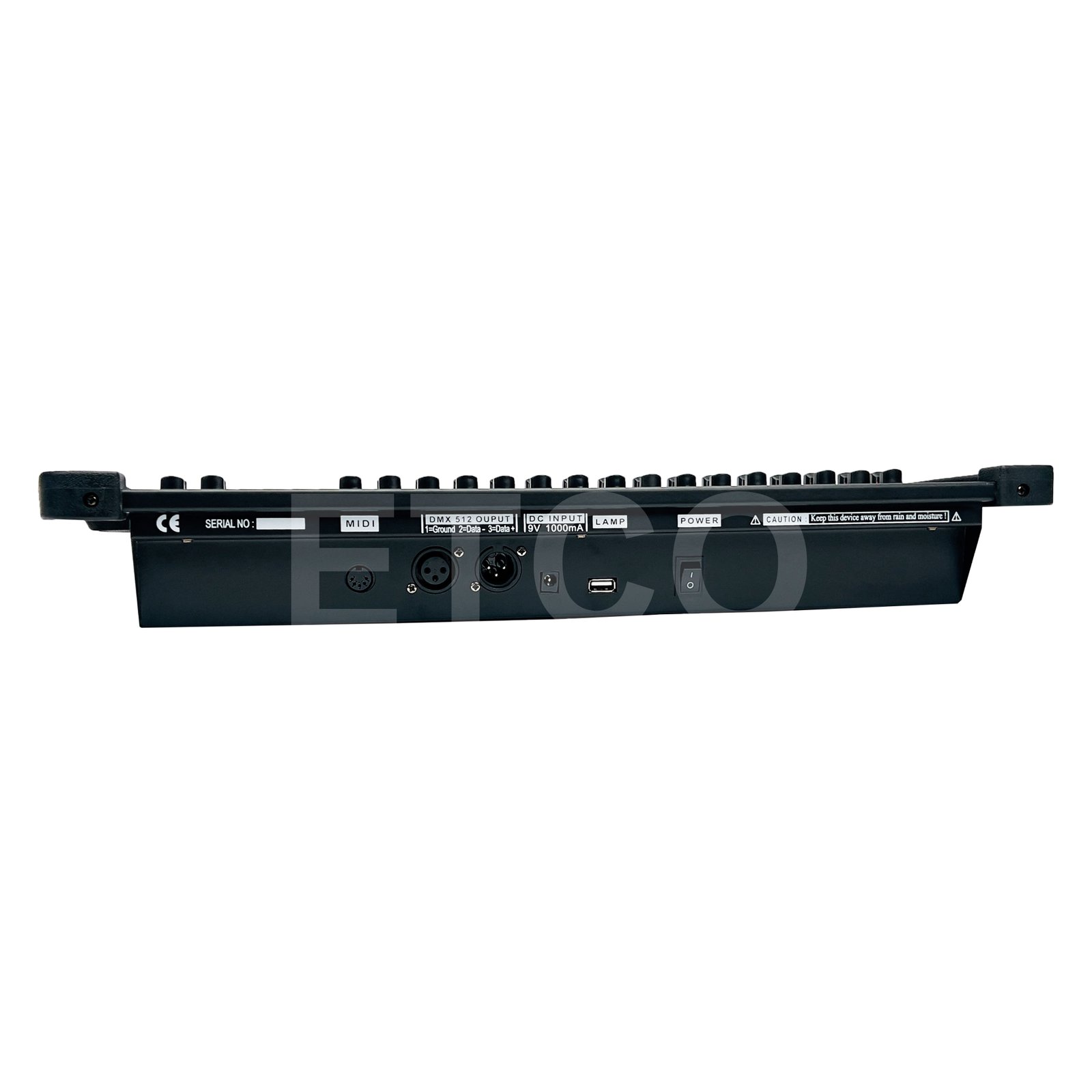

DMX signal output connector: XLR-D3F
