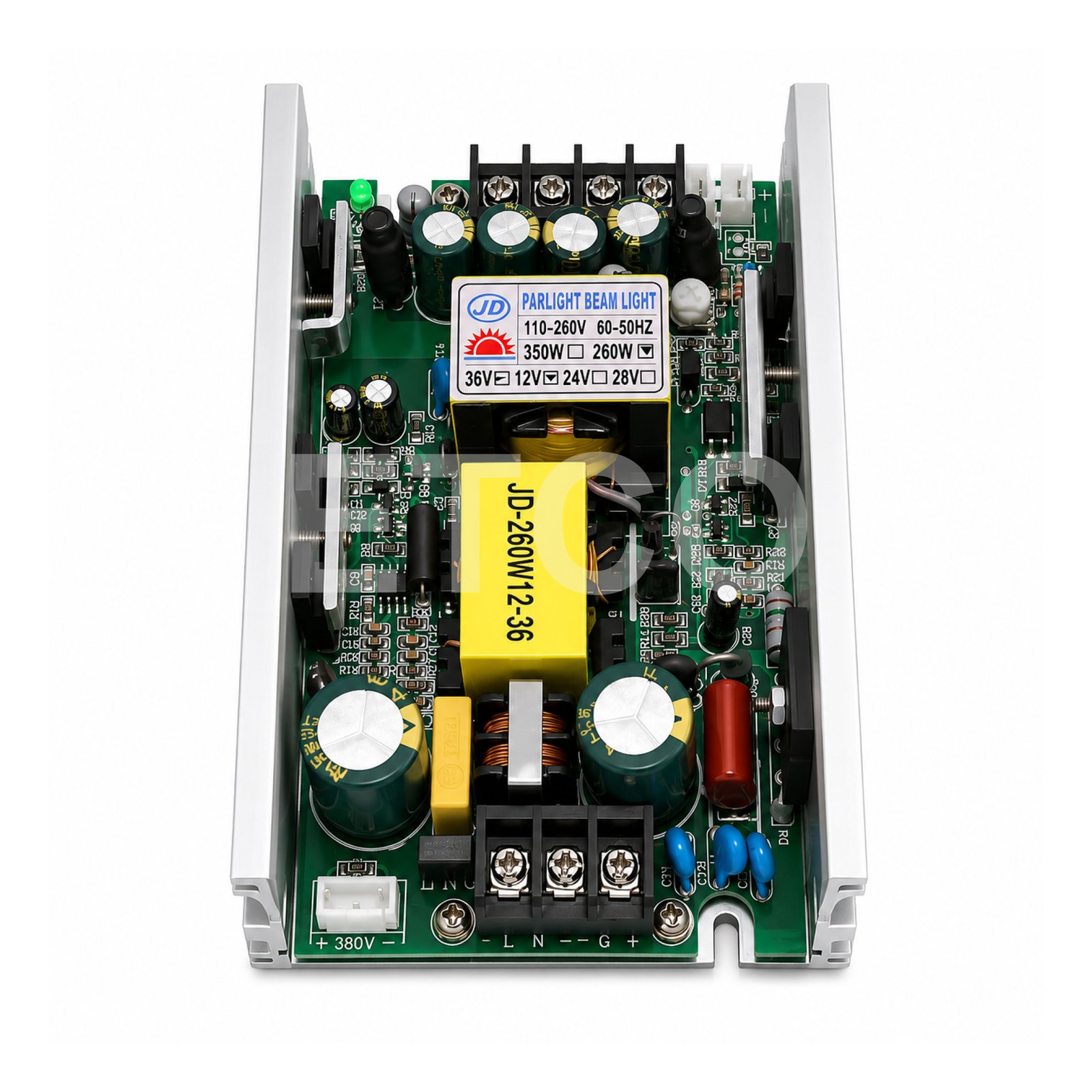

Introducing the ETCO Beam Supply 260W, model JD-260W12-36, a main power supply board for beam moving head lights in Pakistan. It turns AC mains into three outputs: 380V for the lamp, plus 36V and 12V for the motors, fans, and control boards. If your beam light won't turn on, resets during shows, or the lamp won't strike, this board is a common fix.
✅ Model JD-260W12-36
✅ Wide AC 110–260V, 50/60Hz input
✅ Three outputs: 380V, 36V DC, 12V DC
✅ 260W rated power
✅ Aluminium frame for heat dissipation
✅ Screw terminals and 380V lamp connector
Technical Parameters
Product: Beam Supply 260W
Model: JD-260W12-36
Input Voltage: AC 110–260V, 50/60Hz
Outputs: 380V (lamp), 36V DC, 12V DC
Power: 260W
Size: 90 × 130 × 40mm
Type: Switching power supply (SMPS)
Housing: Aluminium mounting frame
Terminals: L / N / G input, DC output block, 380V connector
Application: Beam moving head lights (confirm compatible models)
The ETCO 260W beam power supply is the main power board for beam moving head lights. First, it converts AC mains into three separate outputs. As a result, the lamp gets 380V while the motors, fans, and control boards receive steady 36V and 12V. However, when this board fails, the light may stay dead, reset during a show, or refuse to strike the lamp.
Technicians use this JD board to repair beam lights instead of buying new fixtures. In addition, the wide 110–260V input handles the voltage drops common at wedding venues. Moreover, the aluminium frame spreads heat, which keeps the board stable during long events. The clearly marked L, N, and G terminals also make wiring quick and safe.
Always match the output voltages with your fixture before ordering. For lights that need 380V, 36V, and 24V, check our 230W beam power supply. For higher-power fixtures, our 450W beam power supply is the better choice. If the lamp still won’t strike, test our 230W beam ballast. Therefore, repair shops in Lahore, Karachi, and Islamabad keep spares ready. Finally, ETCO Sound & Light delivers nationwide.
What is a 260W beam power supply?
It is the main power board of a beam light. So, it powers the lamp, motors, and control boards.
How do I know the power supply is faulty?
The light won’t turn on, resets randomly, or the motors stop. However, check the fuse and power cable first.
Is it safe to replace it myself?
Only if you are trained. It carries mains and 380V outputs, so let a qualified technician install it.
What is the price of a 260W beam power supply in Pakistan?
The price depends on quantity. So, contact ETCO Sound & Light on WhatsApp for the latest rates. Also, we offer bulk prices for repair shops.
Where can I buy it in Pakistan?
You can buy it from ETCO Sound & Light in Lahore. Moreover, we deliver across Pakistan.
