XLR Connectors 5 Pin Seetronic

SKU: LA00483 In Stock

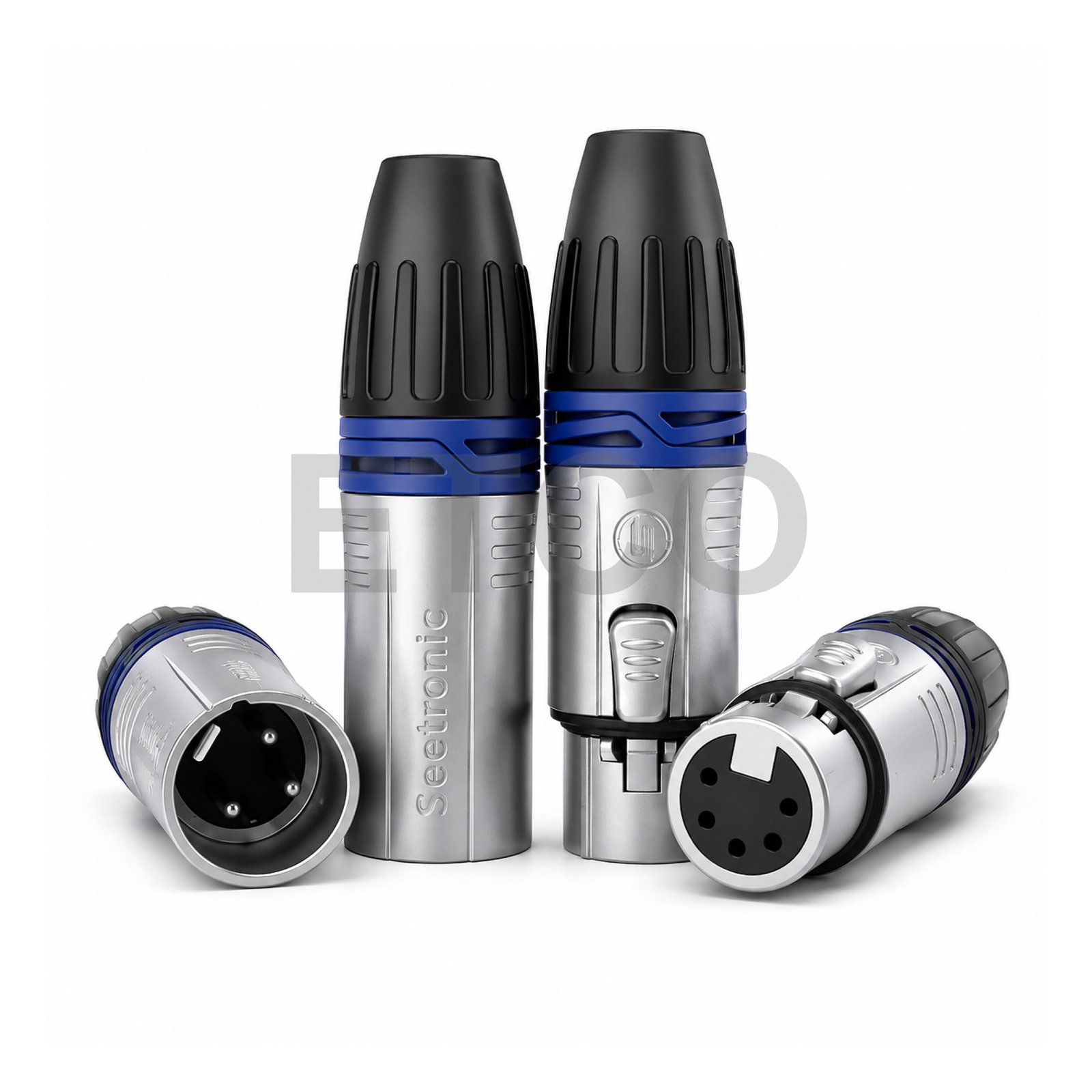

Introducing Seetronic 5 Pin XLR Connectors, professional male and female cable connectors for DMX lighting and pro audio in Pakistan. The 5-pin layout matches the standard DMX512 connection used on many lighting consoles and fixtures. Plus, the rugged metal body, locking latch, and two cable clamps give a secure, long-lasting connection.

✅ 5-pole XLR, male and female
✅ Standard 5-pin DMX512 connection
✅ Rugged metal housing with rubber grip
✅ Two cable clamps for 3.5–8.0mm cables
✅ Low contact resistance for clean signal
✅ Over 1000 mating cycles

Technical Parameters
Brand: Seetronic
Connection Type: XLR, 5-pole
Rated Current per Contact: 7.5A
Rated Voltage: < 50V AC
Contact Resistance: ≤ 3mΩ
Insulation Resistance: > 10GΩ (initial)
Dielectric Strength: 1.5kV DC
Cable O.D. Range: 3.5 – 8.0mm (two clamps: 3.5–6mm and 6–8mm)
Wire Size: Max 1.0mm (18 AWG)
Service Life: > 1000 mating cycles
Temperature Range: –30°C to +80°C
Protection Class: IP40

PKR 500

Buy Now

Key Features

✓5 pin XLR connectors, 5 pin XLR connector, Seetronic XLR 5 pin, DMX XLR connector, 5 pin DMX connector Pakistan, XLR male female 5 pin, metal XLR connector, DMX cable connector Lahore, XLR connector price in Pakistan, lighting cable connector

Seetronic 5 pin XLR connectors give your lighting and audio cables a strong, professional finish. First, the 5-pin layout matches the official DMX512 standard used on many consoles and fixtures. As a result, you can build reliable DMX cables for professional lighting rigs. In addition, the metal body protects the joint from crushing and bending.

Lighting technicians use these connectors for DMX cables, intercom lines, and pro audio links. Also, two cable clamps fit cables from 3.5mm to 8mm, so they work with most cable types. Moreover, the low contact resistance keeps signals clean and stable. For stable signal across long runs, pair your cables with our DMX splitter isolator. For bulk cable, check our XLR cable coil.

The rubber grip and locking latch make plugging in secure and easy. Therefore, lighting companies in Lahore, Karachi, and Islamabad trust them for professional DMX wiring. Finally, ETCO Sound & Light offers genuine stock and delivers nationwide.

What are 5 pin XLR connectors used for?
They are mainly used for DMX lighting cables. Some audio and intercom systems also use them.

What is the difference between 3 pin and 5 pin XLR?
3 pin XLR is common for microphones and many lights. However, 5 pin XLR is the official DMX512 standard.

Can I connect 5 pin and 3 pin devices?
Yes, with a 5-to-3 pin adapter cable. So, you can mix fixtures on one DMX line.

What is the price of 5 pin XLR connectors in Pakistan?
The price depends on quantity. So, contact ETCO Sound & Light on WhatsApp for the latest rates. Also, we offer bulk prices for lighting companies.

Where can I buy them in Pakistan?
You can buy them from ETCO Sound & Light in Lahore. Moreover, we deliver across Pakistan.
